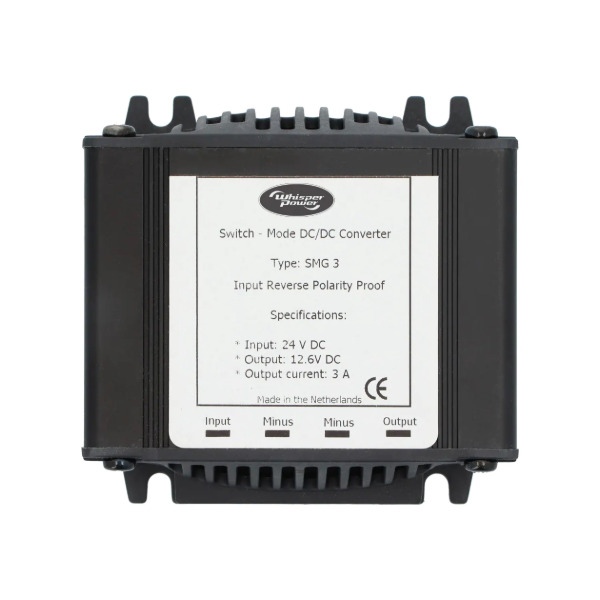

Whisper Power MG DC/DC Converter - 24-12-3-i DC-DC step-down converter MG 24-12 VDC 3 A -i. Supplies devices with 12 VDC while your battery produces 24V. This buck converter features an electronic process that ensures high efficiency with minimal heat output. Its effectiveness and reliability make it a superb solution for stable voltage conversion. Galvanically isolated model, extra stability due to separated power circuits.
Length x width x height, mm (in.) - 50 × 85 × 88 (2 x 3.3 x 3.5)
Weight, kg (lb.) - 0.25 (0.6)
Converter type - voltage step down and stabilization
Nominal input voltage - 24 VDC
Input range, specifications met - 20 .. 35 VDC
Input range, no defects - 0 .. 35 VDC
Nominal output voltage - 12.5 VDC
Voltage adjustable - Yes
Output accuracy - 3%
Ripple, peak output voltage - 1%
maximum power output - 38 W
continuous output power - 36 W
Maximum output current - 3 A
Continuous output current at 40 °C - up to 3 A
efficiency - >87%
consumption no load - <25 mA
Ambient operating temperature - -10°C .. +40°C
Storage temperature - -25° .. +85°C
Relative humidity in use - up to 95%, non-condensing
Galvanic isolation - Yes, 500 Vac
Cooling - Mechanical
Current / short circuit - Restricted by current rating
Overheating, shut down Power restricted by temperature
Faston in / off, max thread thickness - 6 mm²
Mounting holes - dia 4 mm, rh 58 x 168
International Protection rating - IP20
Housing - frame 7
Housing material - Anodized aluminium, ABS end caps
Housing colour - RAL 9011 graphite black
Meets the following Standards - EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice. |
