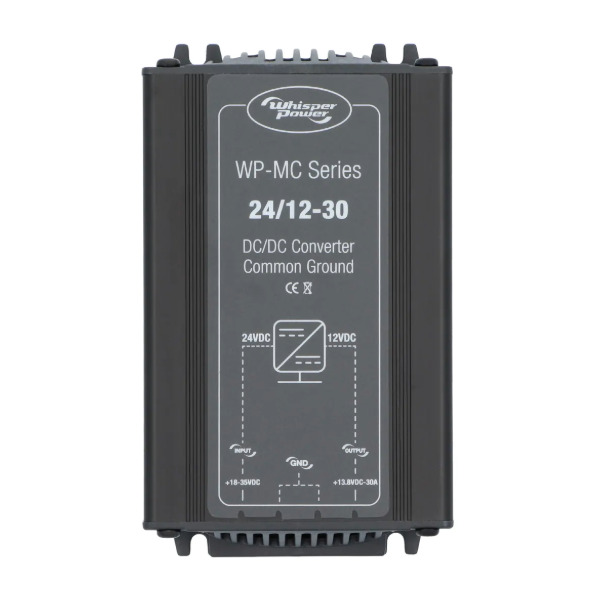

Whisper Power MC DC/DC Converter - 24-12-30DC-DC step-down converter MC 24-12 VDC 30 A with common negative. Delivers 12 VDC to equipment sourced from a 24V battery. The device employs Switched Mode technology for efficient energy usage and optimal output. Moreover, it is safeguarded against overload and can withstand high temperatures. Cannot be used in parallel. - Voltage step down and stabilization
- Minimal energy loss thanks to Switched Mode technology (>90% efficiency)
- High quality industrial design for high reliability and longer life cycle
- Silent - no humming, only temperature-controlled fans for cooling
- No interference with radios, VHF or other sensitive equipment
- Compact, fast and easy to install
- Excellent price - performance ratio
- Cannot be used in parallel
Length x width x height, mm (in.) - 50 x 151 x 88 (2 x 6 x 3.5)
Weight, kg (lb.) - 0.5 (1.1)
Converter type - voltage step down and stabilization
Nominal input voltage - 24 VDC
Input range, specifications met - 18 .. 35 VDC
Input range, no defects - 0 .. 35 VDC
Nominal output voltage - 13.8 VDC
Voltage adjustable - no
Output accuracy - 1%
Ripple, peak output voltage - 1%
maximum power output - 490 W
continuous output power - 420 W
Maximum output current - 35 A
Continuous output current at 40 °C - up to 30 A
efficiency - >92%
consumption no load - <25 mA
Ambient operating temperature - -10°C .. +40°C
Storage temperature - -25° .. +85°C
Relative humidity in use - up to 95%, non-condensing
Galvanic isolation - Common negative
Cooling - Mechanical
Current / short circuit - Restricted by current rating
Overheating, shut down Power restricted by temperature
Faston in / off, max thread thickness - 6 mm²
Mounting holes - dia 4 mm, rh 58 × 143
International Protection rating - IP20
Housing - frame 6
Housing material - Anodized aluminium, ABS end caps
Housing colour - RAL 9011 graphite black
Meets the following Standards - EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU
Note: The above specifications are subject to change without prior notice. |
