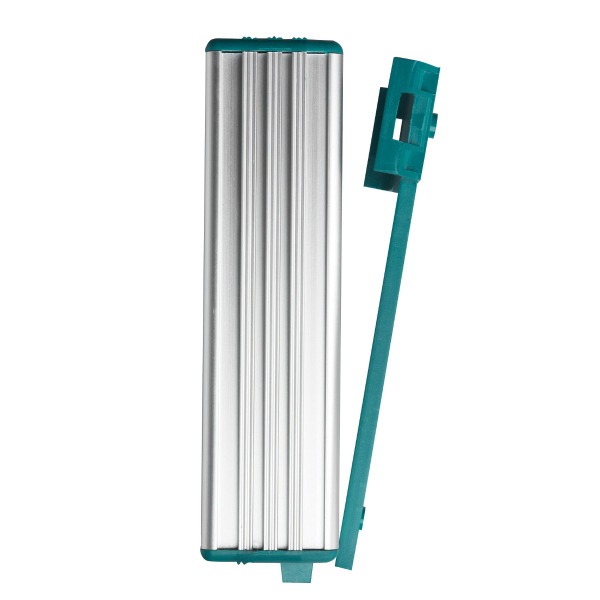

Mastervolt DC Master 24/12-12 DC-DC Converter - IsolatedThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.
- Recreational and semi-professional use.
- Easy to install using included mounting bracket.
- Excellent price/performance ratio.
- Available in isolated and non-isolated versions
The isolated DC Master models provide galvanic isolation between input and output circuits.
Features:
- Extra touch-proof.
- Interference suppression for sensitive equipment.
- Available with negative or positive grounding.
Intelligent DC-DC converters
A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.
Complete package
All DC Master converters are delivered with mounting bracket, screws and fasteners.
Specifications
- General specifications
- Nominal output voltage - 13.6 V
- Max. output power - 245 W
- Nominal output power - 164 W
- Max. output current (for 2 min. intervals) - 18 A
- Continuous output current - 12 A
- Nominal input voltage - 24 V
- Input voltage range (max.) - 20-32 V DC (35 V)
- Galvanic isolation - yes
- Stabilised - yes
- Dimensions, hxwxd - 167 x 87 x 50 mm (6.6 x 3.4 x 2.0 inch)
- Weight - 0.59 kg (1.3 lb)
- Compliance - CE, E-mark
- Technical specifications
- DC consumption - < 15 mA
- Connections - fast-on
- Temperature range (ambient temp.) - -25 °C to 80 °C, derating > 30 °C (-13 °F to 176 °F)
- Cooling - natural cooling
- Protection degree - IP53
|
