MaxPower CT125 Electric Bow Thruster Basic Bundle Pack - 24V - 115kgf - 185mmThe CT125 is the most powerful 185mm diameter tunnel thruster on the MAX POWER range.
This high performance thruster is available in 24V and 48V, suitable for motor boats and deep footed sailing yachts ranging from 35’-58’.
Offering all the unique features of the MAX POWER Electric Tunnel Thrusters range, this model is ideal where extra thrust power is required.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
• For the 48V variant we have 48% decrease in amperage consumption and 50% increase in operation cycle,
in relation to the 24V equivalent variant which makes it a cost efficient solution (smaller cables, supply from the
same home batteries which results in lower installation costs)
Voltage - 24V
Thrust - 115(kg) / 253(lbs)
Propellers - 2
Power - 8.58(kw) / 11.5(hp)
Weight - 24kg

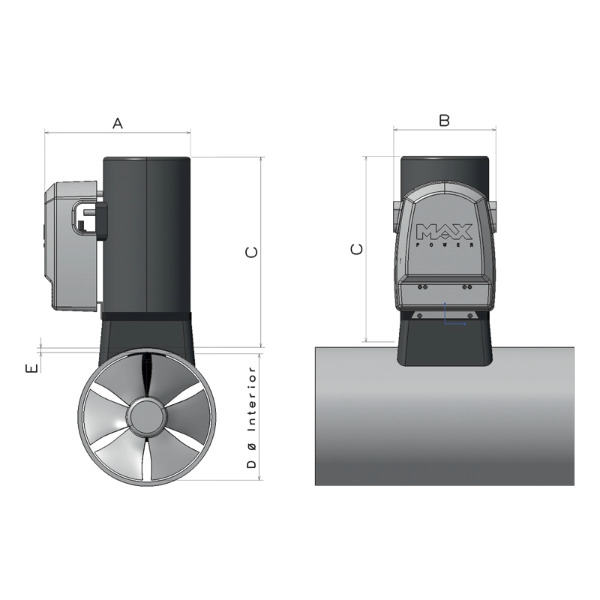

A - 250mm
B - 200mm
C - 365mm
D - 185mm
E - 6-7mm
Drive Leg (material) - Composite
Basic Bundle Pack Includes:
MaxPower CT125 Electric Bow Thruster
MaxPower Simple Joystick Pack - Black
MaxPower ANL Fuse - 225A
MaxPower ANL Fuse Holder
|
