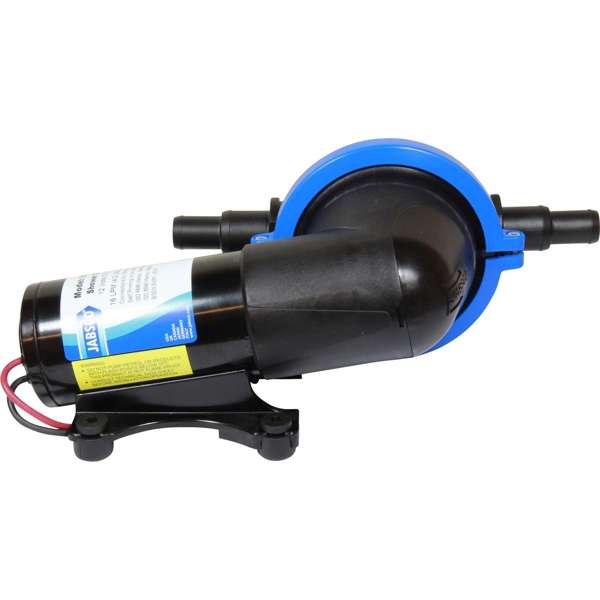

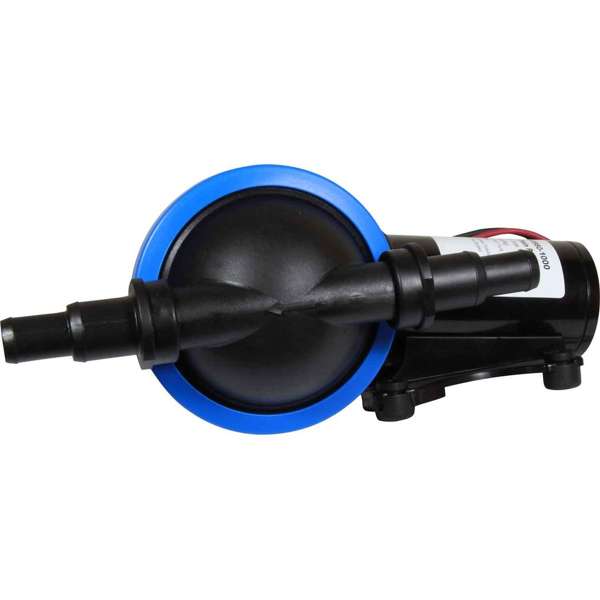

Jabsco Diaphragm Bilge Pump (12V / 16LPM / 19mm / 25mm Hose)Jabsco 50880-1000 self priming diaphragm pump. Robust, single diaphragm and joker valves make this pump ideal for sink and shower drain applications. The design also features multi-positional 19mm (3/4") id ports.
The single diaphragm design allows extended dry running, and can self prime up to 3 metres vertical lift. Output is up to 16 litres/minute (3.5 gallons per minute) Maximum recommended head is 6 metres. These pumps are extremely quiet, and rated for up to 30 minutes continuous running.
No strainer is required. Specifications: Approvals ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, Built to ISO15083 Spec, Meets BSEN50081 (Electro Magnetic Compatibility)
Consumption 8 a
Flow Rate Description 960 LPH (253 US GPH) at 1m head
Fuse 10A
Height Description 132mm (5.2")
Length 294mm (11.6")
Outlet 25mm (1") ID Hose
Series 50880 Series
Voltage Description 12V DC
Width 159mm (6.25")
Brand Jabsco
Automatic Bilge Pumps No
Connections Description 19mm (3/4")
Hose Size 19mm / 3/4", 25mm / 1"
Maximum Recommended Head 6 Metres (19.6 Feet)
Model 50880-1000
Replaces Jabsco 31705-0092
Self Primes up to 3 Metres (9.8 Feet)
Inlet Outlet 19mm (3/4") & 25mm (1") ID hose
Amps Description 8A Maximum |
