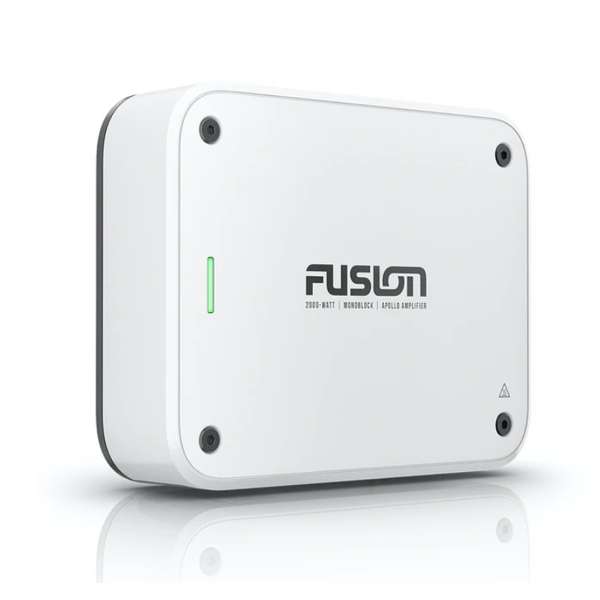

Amplify the moment with an Apollo™ marine amplifier – designed specifically for use with your Fusion® DSP-enabled marine stereo and Fusion speakers.
This powerful and efficient monoblock amplifier is the difference between hearing the music and feeling it. With an impressive 650-watt RMS (at 4 ohm), this amplifier is specifically designed to power a subwoofer. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).
Features:
Impressive Power: 650-watt RMS (at 4 ohm), specifically designed to power a subwoofer.
Efficient Class-D Design: Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.
Easy Tune Feature: Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
LED Indicator: Show issues with electrical currents and shorts as well as temperature.
Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better quality audio.
Ignition Protected: Intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
Conformal Coated PCBs: The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.
Powder Coated Aluminum Finish: Salt fog, temperature, vibration and UV tested with a modern aesthetic design to add style to your boat.
Easy Installation: Proprietary cable connectors and a mounting bracket is included in the box. The cable connectors allow you to pre-wire your speakers/subwoofers, while the mounting bracket allow you to simply clip the amplifier in place for a clean finish.
True-Marine™ Design: Designed to withstand the harshest marine environments season after season and comes with a 3-year warranty.
Specifications:
| Physical Dimensions Without Bracket (WxHxD) | 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm) |
|---|
| Physical Dimensions With Bracket (WxHxD) | 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm) |
| Weight | 4.85 lb (2.2 kg) |
| Water Rating | IPX2 |
| Amplifier Class | Class-D |
| CEA-2006 Power Rating | 650-watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD |
| Total Rated Power Output - 2 ohm (watt) | 1100-watt RMS x 1 @ 14.4 V input - 2 ohm < 1% THD |
| Peak Power (watt) | 2000-watt |
| Input Sensitivity | 2 V RMS |
| Input Impedance | 22k ohm |
| Operating Voltage | 10.8 V - 16 V DC |
| Current Consumption (StandBy) | < 5 mA @ 14.4 V input |
| Current Consumption (Idle) | < 0.89 A @ 14.4 V input |
| Current Consumption (Max) | 87 A |
| Fuse Rating | 125 A electronic fuse (no replacement necessary) |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection Circuits | Reverse voltage, input under/over voltage, over temperature, output short circuit |
| Operating Temperature Range | 32° to 122° F (0° to 50° C) |
| Warranty | 3 years |
