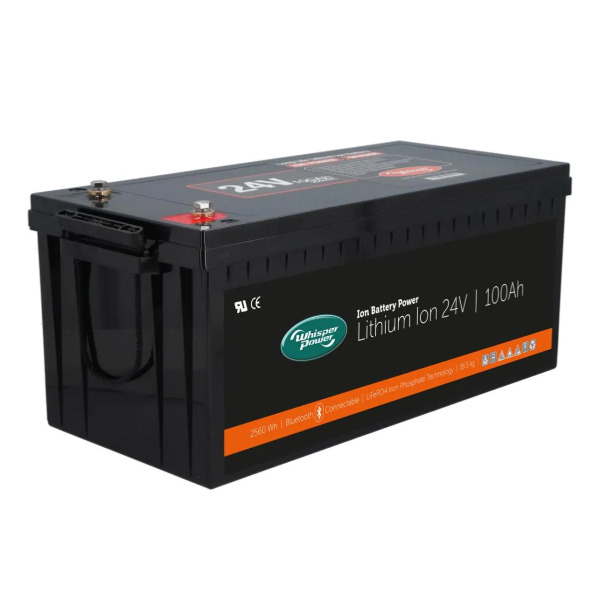

Whisper Power Lithium Power Basic Battery - 24V / 100AhOur Lithium Power Basic 24 V – 100 Ah batteries are Lithium Iron Phosphate re-chargeable batteries. Lithium Iron Phospate (LiFePO4) technology is considered as the safest lithium technology available in the market. Potential applications of this Lithium Power Basic 24 V – 100 Ah battery include: recreational vehicles, boats, recreational off-grid houses, industrial energy storage solutions. - High Class Lithium battery
- 24 V 100 Ah, Li Fe PO4
- Can be discharged up to 100%
- >2000 cycles at average use
- Perfect for 24 VDC systems
- High power density, only 29.6 kg
Length x width x height - 522 x 240 x 224 mm (20.6" x 9.5" x 8.8" inch)
Weight - 29.6 kg (65.3 lb.)
Nominal voltage - 25.6 V
Rated capacity - 100 Ah
Energy - 2560 Wh
Cycle life - >2000 cycles
Terminal type - M8
Battery housing - ABS, UL-94V-0
Housing protection - IP56
CellType-chemistry - LiFePO4 Cylindrical Cell
Charge Method - CC-CV
Charge Voltage - 28.8 ~ 29.2 V
Recommended Float Voltage - 27.6 V
Recommended Charge Current - 75 A
Maximum Charge Current - 100 A
BMS Charge Cut-off Voltage - 31.2 V
Continuous Discharge Current - 100 A
Peak Discharge Current - 100 A (<10 seconds)
Recommended Volt. Disconnect - 20 V
BMS Discharge Cut-off Voltage - 16 V
Reconnect Voltage - 18.4 V
Short Circuit Protection - 200~600 us
Discharge Temperature - -20 to 60 C
Charge Temperature - 0 to 45 C
Storage Temperature - 0 to 40 C
BMS High Temperature Cut-off - 80 C (176 F)
Certifications UL1642 (cell), CE, IEC62133 & CB, KC, BIS |
