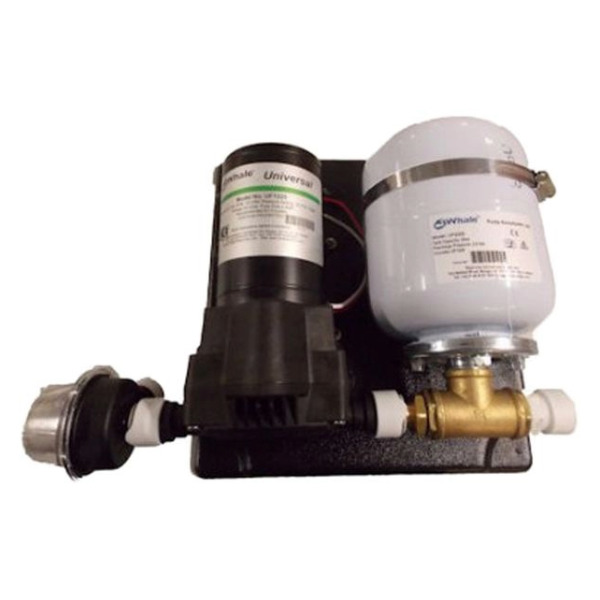

Whale UF2224 Pump and Accumulator Water Pressure Kit - 24V / 11.5 LPM / 30 PSIThe Whale pump accumulator kit UF2224 provides a smooth, constant flow and prevents water hammering and cycling. The one piece kit includes a Whale UF1224 pressure pump an 2 litre compact accumulator tank.
This integrated kit is a pre-assembled kit designed to provide a constant, reliable flow of water on board and reduces noise and vibration caused by pump cycling. Save time and money with this drop-in-line fast installation kit.
Whale UF2224 can be easily plumbed into Whale Quick Connect 15mm plumbing systems.
Approvals EMC Compliant, CE Marked
Capacity 2 Litres (0.53 US Gallons)
Cut Out Pressure 30 PSI / 2 Bar
Flow Rate 11.5 LPM (3 US GPM)
Fuse 5A
Height 143mm (5.63")
Length 280mm (11.2")
Material Glass-filled Polypropylene Aluminium & Powder-coated Steel Pump Body, antoprene Diaphragms, Monoprene Valves and Feet, Nitrile Seals, Butyl Tank, ABS Base, Brass Fittings, Stainless Steel Fasteners Series Universal
Supplied With Strainer
Voltage 24V DC
Width Base: 355mm (14")
Warranty 2 Years
Hose Size 15mm / 19/32"
Maximum Recommended Head Discharge Head: 3 Metres (10 Feet)
Maximum Suction Lift 20m (66ft)
Model UF2224
Wire Size Minimum: 2.5mm² (20 SWG / 13 AWG)
Inlet Outlet 15mm Whale Female Quick Connect |
