Victron BMV-712 Smart Battery Monitor - Black Bluetooth inside
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being
implemented in most other Victron Energy products, wireless communication between products will simplify
system installation and enhance performance.

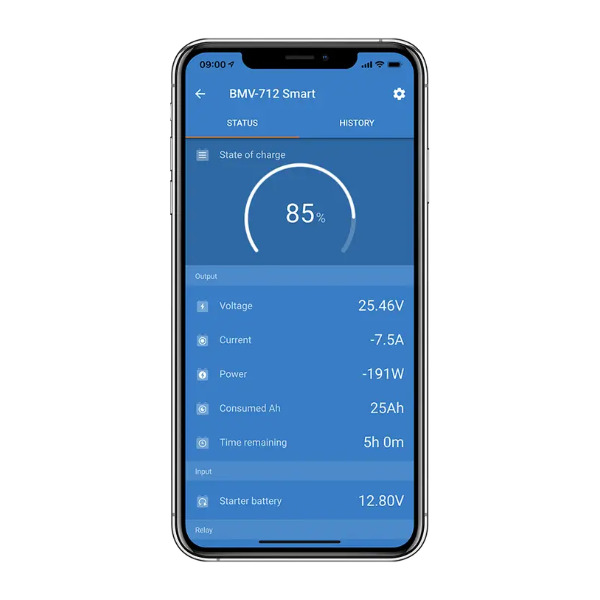

Download the Victron Bluetooth app
Use a smartphone or other Bluetooth enabled device to
- customize settings,
- monitor all important data on single screen,
- view historical data, and to
- update the software when new features become available.
Easy to install
All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the
monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m);
no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.
Midpoint voltage monitoring
One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information.
We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected lead-acid batteries.
Very low current draw from the battery
Current consumption: 0.7 Ah per month (1 mA) @12 V and 0.6 Ah per month (0.8 mA) @ 24 V. Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown. After shutdown due to low cell voltage, the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery.A residual current of 10 mA for example may damage a 200 Ah battery if the system is left in discharged state during more than 8 days.
Bi-stable alarm relay
Prevents increased current draw in case of an alarm.
Other features
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10,000 Amps
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6.5 – 70 V
- High current measurement resolution: 10 mA (0.01 A)
- Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and
corresponding alarm and relay settings
Supply voltage range 6.5 - 70 VDC
Current draw, back light off < 1 mA
Input voltage range, auxiliary battery 6.5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50 °C (-40 – 120 °F)
Measures voltage of second battery, or
temperature, or midpoint Yes
Temperature measurement range -20 +50 °C
VE.Direct communication port Yes
Bistable relay 60V / 1A normally open (function can be inverted)
RESOLUTION & ACCURACY (with a 500 A shunt)
Current ± 0.01 A
Voltage ± 0.01 V
Amp hours ± 0.1 Ah
State of charge (0 – 100%) ± 0.1 %
Time to go ± 1 min
Temperature (0 - 50°C or 30 - 120°F) ± 1 °C/°F
Accuracy of current measurement ± 0.4 %
Accuracy of voltage measurement ± 0.3 %
INSTALLATION & DIMENSIONS
Installation Flush mount
Front 63mm diameter
Front bezel 69 x 69mm (2.7 x 2.7 inch)
Shunt connections bolts M10 (0.3937 inch)
Body diameter and depth 52 mm (2.0 inch) and 31 mm (1.2 inch)
Protection category IP55 (not intended for outdoor use)
STANDARDS
Safety EN 60335-1
Emission / Immunity EN 55014-1 / EN 55014-2
Automotive ECE R10-4 / EN 50498
ACCESSORIES
Shunt (included) 500 A / 50 mV
Cables (included) 10 meter 6 core UTP with RJ12 connectors,
and cable with 1Amp slow blow fuse for ‘+’ connection
Temperature sensor Optional (ASS000100000)
STORED TRENDS
Data stored
Battery voltage, Current, State of Charge % as well as
the Aux input (Battery temperature, or midpoint
deviation, or starter battery voltage).
Number of days trends data is stored 46 |
