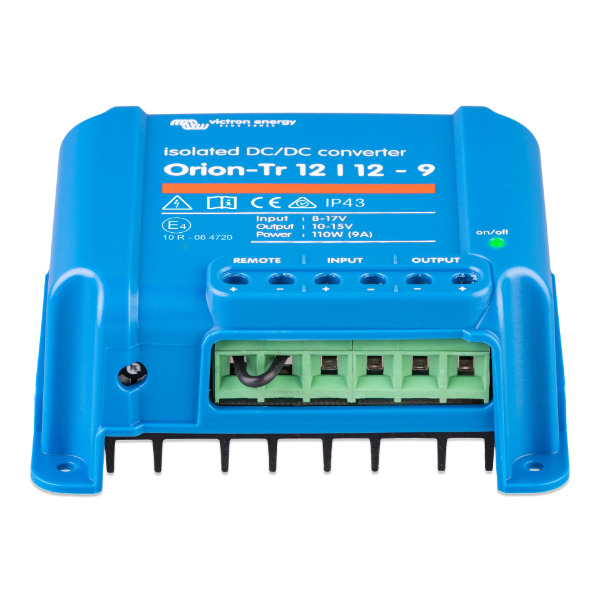

Victron Orion-Tr Isolated DC-DC Converter - 12/12-9A / 110WRemote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
IP43 protection - When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse
On 12V and 24V input models only.
Input voltage range - 8-17V
Under voltage shut down - 7V
Under voltage restart - 7,5V
Nominal output voltage - 12.2V
Output voltage adjust range - 10-15V
Output voltage tolerance +/- - 0.2V
Output noise - 2mV rms
Cont. output current at nominal output voltage and 25 °C - 9A
Maximum output current (10 s) at nominal output voltage - 12.5A
Short circuit output current - 32A
Cont. output power at 25 °C - 110W
Cont. output power at 40 °C - 85W
Efficiency - 87%
No load input current - < 50 mA
Current consumption - < 200uA when disabled via its remote port
Galvanic isolation - 200 V dc between input, output and case
Operating temperature range - -20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity - Max. 95 % non-condensing
DC connection - Screw terminals
Maximum cable cross-section - 6 mm² AWG10
Weight - 0,42 kg (1 lb)
Dimensions hxwxd - 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch)
Standards:
Safety - EN 60950
Emission - EN 61000-6-3, EN 55014-1
Immunity - EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive - ECE R10-5
|
