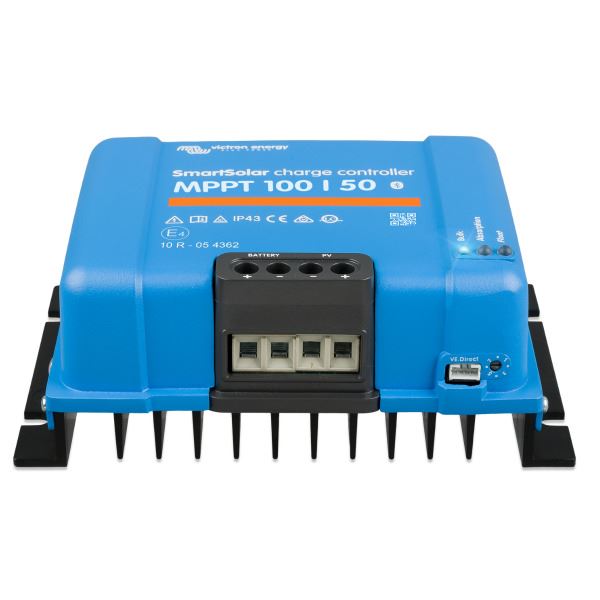

Victron Energy SmartSolar MPPT 100/50 Solar Charge Controller

Victron Energy SmartSolar MPPT 100/50 Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Key Features

• Ultra-fast Maximum Power Point Tracking (MPPT).
• Advanced Maximum Power Point Detection in case of partial shading conditions.
• Outstanding conversion efficiency.
• Natural convection cooling.
• Automatic battery voltage recognition.
• Flexible charge algorithm.
• Over temperature protection and power derating when temperature is high.

Sizing options:

• Suitable for a variety of battery voltages. Most models connect to 12, 24, and 48V batteries, some only connect to 12 and 24V batteries, or only to 48V batteries.
• Charge currents rating from 10A all the way up to 100A.
• Maximum PV array Voc voltages ranging from 75V up to 250V.
• Multiple chargers can be used in parallel, for large systems we recommend to use the models with a VE.Can communication port.

PV terminal options:

• TR - one positive and one negative screw terminal.
• MC4 - 3 pairs of paralleled MC4 connectors.

Bluetooth:

• SmartSolar models have Bluetooth.

Display options:

• VictronConnect Application. Connects via Bluetooth or via the VE.Direct - USB interface
• MPPT Control. Connects to all models via a VE.Direct cable
• SmartSolar Control Display. Plugs directly into the housing of the larger models
• GX device
• VRM website (GX monitoring device needed)

Communication ports:

• VE.Direct - all models
• VE.Direct and VE.Can - limited models. VE.Can is especially suitable for systems with multiple solar chargers. All units are simply “daisy chained” to each other with a single RJ45 cable between each unit and also between the las unit in the chain and the a GX monitoring device.

Temperature sensor options:

• Internally.
• Externally via the Smart Battery Sense.

Load output options:

• Physical output - On the 10, 15 and 20A models.
• Virtual output - via VE.Direct TX digital output cable and the BatteryProtect or a solid-state relay.

Firmware update options:

• Local updates via the VictronConnect Application (via Bluetooth or USB-VE.Direct interface)
• Remote updates via VRM website and a GX device

Optional accessories:

• VictronConnect Application (free download)
• Wire boxes, to cover and protect the terminals. See table on page 2 for wire box types
• Control and display panels: MPPT control or SmartSolar control)
• GX monitoring device (CCGX, Venus GX, Octo GX or Cerbo GX)
• Data cables: VE.Direct cable, RJ45 Cable (VE.Can models only), USB-VE.Direct interface
• External control cables: TX cable, non-inverting cable
• Bluetooth dongle (for non-smart models)

More information:

• To access the above-mentioned documents or information: press the search button on our website
and enter the appropriate search word.
• For connection to a Color Control GX or other GX device see:
https://www.victronenergy.com/live/venus-os:start.
