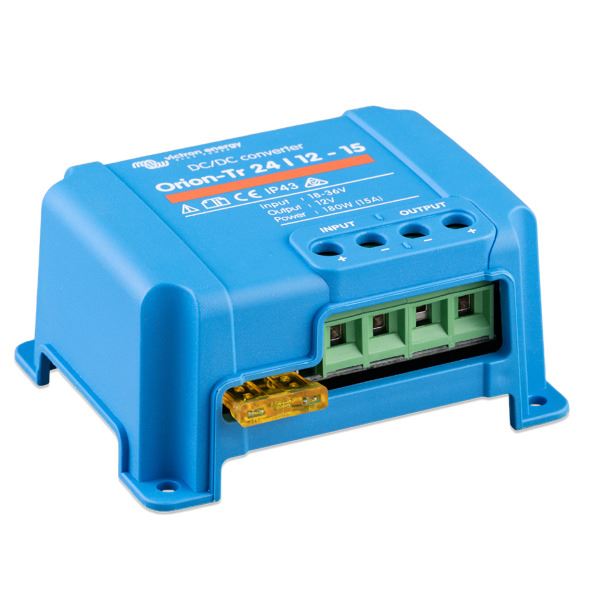

Victron Energy Orion-Tr 24/12-15 DC-DC converter - 180W - Non-IsolatedHigh efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation
Specifications: Input voltage range
| 18-35V | Output voltage
| 12.5V | Efficiency
| 97% | Continuous output current
| 15A | Max. Output current
| 20A | Galvanic isolation
| No | Off load current
| < 35mA | Operating temperature range
| (derate 3% per °C above 40°C) -20 to +55°C | DC connection
| Screw terminals | Maximum cable cross-section
| 6 mm² - AWG10 | | Weight kg | 0,25 (0.55 lbs) | | Dimensions hxwxd in mm (hxwxd in inches) | 73x94x45 (2.9x3.7x1.8) | Standards:
| Safety EN 60950 Emission EN 61000-6-3, EN 55014-1 Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive ECE R10-4 |
|
