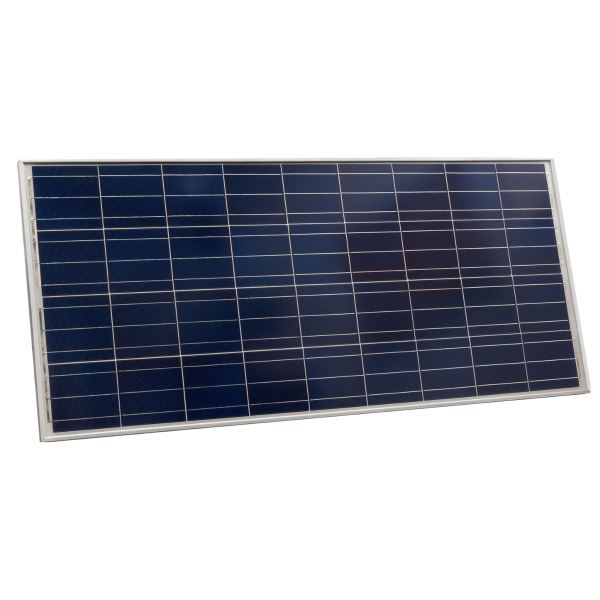

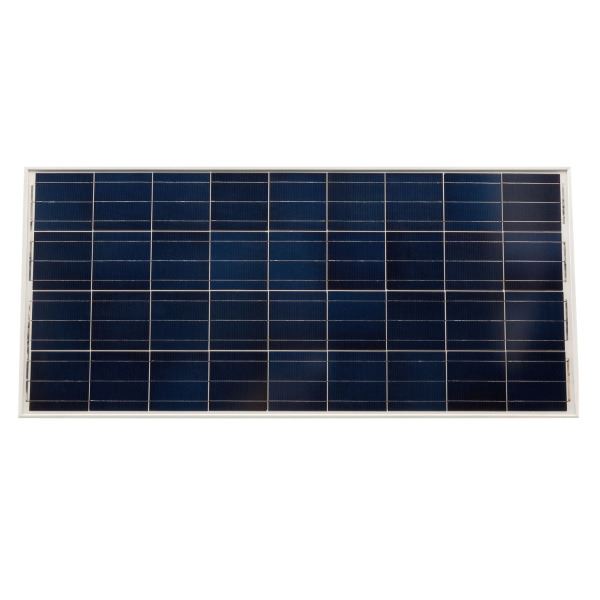

Victron Energy BlueSolar Polycrystalline PV Solar Panel - 12V / 175W• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors. Specifications:
Article Number
| SPP041751200 | Net Weight (kg)
| 12 | Nominal Power (W)
| 175 | Max-Power Voltage (V)
| 18,3 | Max-Power Current (A)
| 9.56 | Open-Circuit Voltage (V)
| 21.9 | Short-Circuit Current (A)
| 10.24 | Nominal Power (± 3% tolerance)
| 175W | Cell type
| Polycrystalline | Number of cells in series
| 36 | Maximum system voltage (V)
| 1000V | Temperature coefficient of PMPP (%)
| -0.45/°C | Temperature coefficient of Voc (%)
| -0.35/°C
| Temperature coefficient of Isc (%)
| +0.04/°C | Temperature Range
| -40°C to +85°C | Surface Maximum Load Capacity
| 200 kg/m²
| Allowable Hail Load
| 23 m/s, 7.53 g | Junction Box Type
| PV-LH0808 | Length of Cable / connector
| 900 mm / MC4 | Output tolerance
| +/-3% | Frame
| Aluminium | Product warranty
| 5 years | Warranty on electrical performance
| 10 years 90% + 25 years 80% of power output |
|
