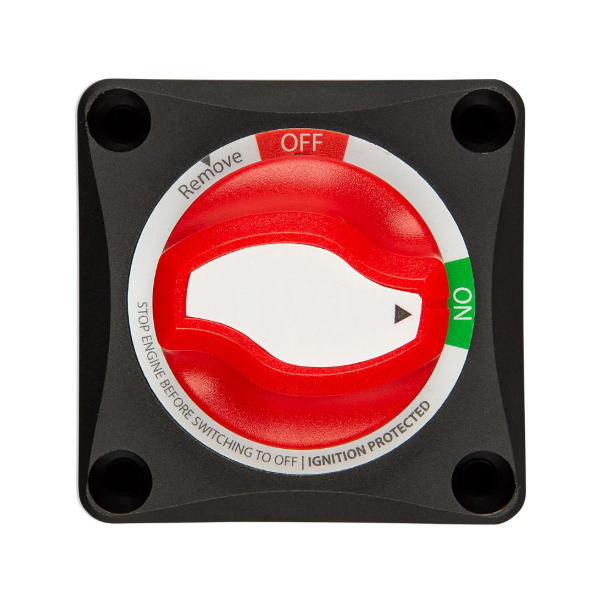

Victron Battery Switch ON/OFF - 275AThe Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes. The Battery Switch can be either surface or panel mounted, providing flexibility during install. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.
Max. continuous current 275 - A
One minute rating - 455 A
Cranking rating - 1250 A
Maximum operating voltage - 60 V
Terminal material - Tin-plated copper
Hex nut material - Tin-plated copper
Terminal diameter - M10 (3/8 inch / 9.53 mm)
Recommended torque - 70 lbf·inch / 8 N·m
Base material - Glass fiber reinforced nylon
Weight - 0.4 lb / 0.2 kg
Dimensions (l x w x h) - 2.7 x 3.0 x 2.7 inch 69.5 x 76.3 x 69.5 mm
Mounting - Surface or rear panel mount
Ignition protected - ISO8846 / SAE J1171 |
