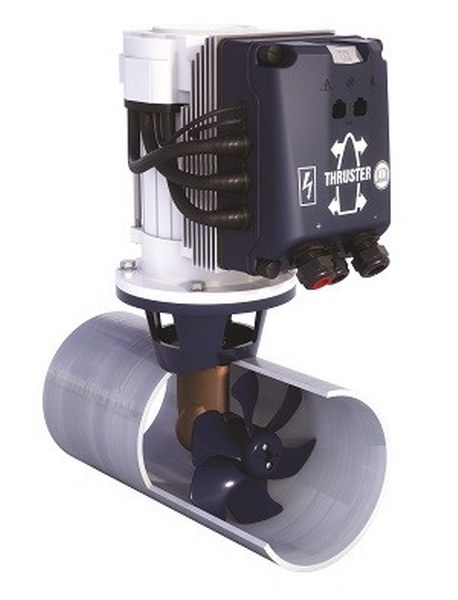

Vetus Bow thruster 220kgf 24V D300mm ER

Description Reviews

Vetus Bow thruster 220kgf 24V D300mm ER Delivers a lot extra!Extended runtime thrusters can be operated continuously for at least 7 minutes without overheating. There is no doubt that all boaters can benefit highlyfrom these thrusters designed for joystick docking and other more demanding applications. Voltage (V) 24 V Current consumption (A) 720 Continuous operating time (min) 10 Main fuse "slow blow" (A) 675 Batteries 12 V, min./max. Ah 325/650 Battery main switch: model BATSW / type BPMAIN Currently not available in the VETUS programme Max. operating time (minutes) 10 Motor, reversible D.C. Yes Ignition protection No Thrust (N / lbf) 2200/494,57 Power (hp) 15 Internal tunnel diameter (inches) 11,81 Weight (lbs) 149,91 Battery cables, length pos./neg. cables (ft/AWG) 0-68,89/300KCM Size A in inches, see drawing 9,72 Size B in inches, see drawing 24,68 Size C in inches, see drawing 5,34 Size D min./max. in inches, see drawing 23,62/47,24 Size E in inches, see drawing 10,15 Size F, diameter in inches, see drawing 8,34 Size G min. in inches, see drawing 11,81 Size H, diameter in inches, see drawing 11,81 Thrust (N / kgf) 2200/220 Power (kW) 11 Internal tunnel diameter (mm) 300 Weight (kg) 68 Battery cables, length pos./neg. cables (m/mm²) 0-21/150 Size A in mm, see drawing 247 Size B in mm, see drawing 627 Size C in mm, see drawing 136 Size D min./max. in mm, see drawing 600/1200 Size E in mm, see drawing 258 Size F, diameter in mm, see drawing 212 Size G min. in mm, see drawing 300 Size H, diameter in mm, see drawing 300 There are currently no reviews for this product. Click here to submit a review
