Vetus BOW1604DI Ignition Protected Bow Thruster - 160kgf - 24V - Dia. 250mm Voltage (V) 24 V
Ignition protection Yes
Thrust (N / kgf) 700 / 70
Power (kW) 4
Motor, reversible D.C. No
Internal tunnel diameter (mm) 185
Weight (kg) 22
Current consumption (A) 140
Continuous operating time (min) 5
Max. operating time (minutes) No
Main fuse "slow blow" (A) 100
Batteries 12 V, min./max. Ah 2x55 / 2x70
Battery cables, length pos./neg. cables (m/mm²) 0-20 / 25
Battery main switch: model BATSW / type BPMAIN 250 / 24

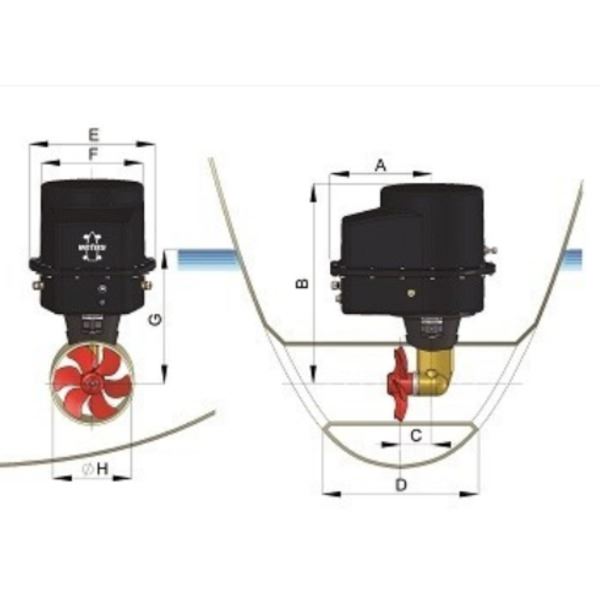

Size A in mm, see drawing 254
Size B in mm, see drawing 586
Size C in mm, see drawing 108
Size D min./max. in mm, see drawing 500/1000
Size E in mm, see drawing 318
Size F, diameter in mm, see drawing 280
Size G min. in mm, see drawing 250
Size H, diameter in mm, see drawing 250
|
