Simrad NSS4 Hybrid Multifunction Display - 12 Inch - No Built-In Sonar

Simrad NSS4 Hybrid Multifunction Display - 12 Inch - No Built-In Sonar

Redesigned inside and out, NSS® 4 is sleeker, faster and smarter. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful Qualcomm® 8-core processor delivers smoother transitions and faster updates.

Hybrid controls for all conditions
NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. And the keypad brings a selection of one-touch functions for easy navigation.

Unmatched speed
Experience the power of a lightning fast Qualcomm® 8-core processor, designed to keep up with every move on the water.

Instant response
Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.

Ultra-fast charting
NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.

Integration

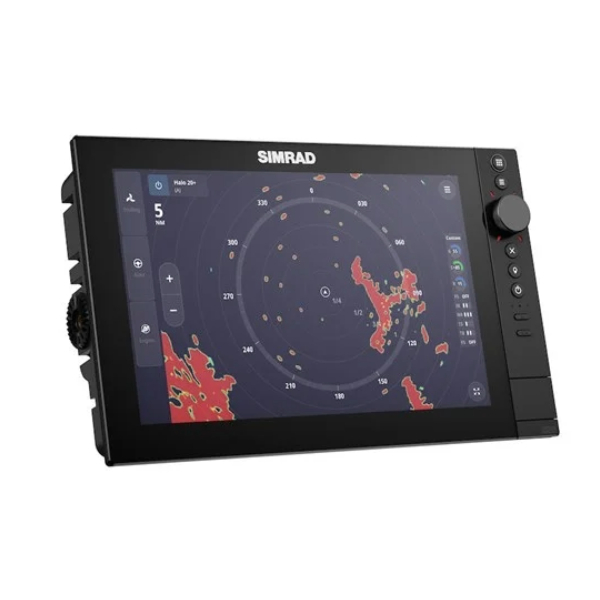

Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

Built for complete customization

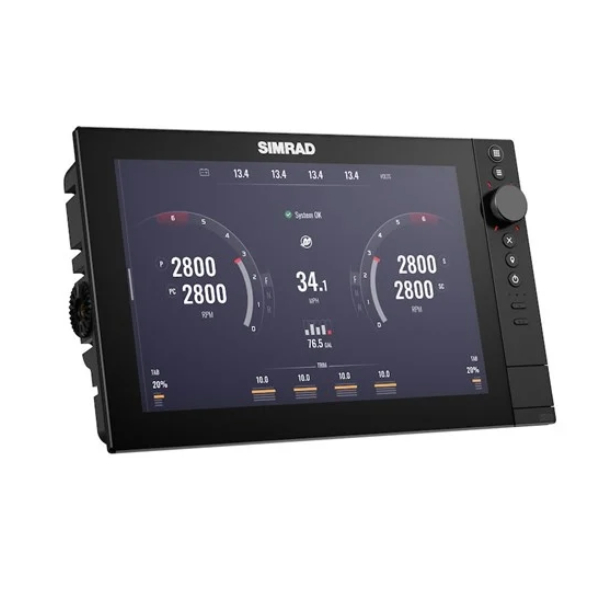

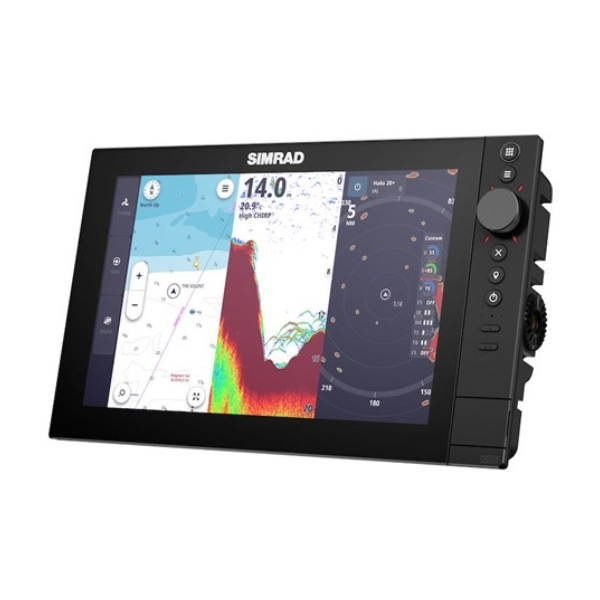

Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen set up.

Specifications

• Display
• Backlight Color - White
• Display Resolution - 1280 x 800
• Display Size - 12 inches
• Screen Brightness - 1200 nits
• Viewing Angles - 80° top/bottom, 80° left/right
• Physical
• Compass Safe - 65 cm (2.1 ft)
• Dimensions W x H x D
• Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″)
• With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″)
• Mounting Type - Bracket mount (bracket supplied). Rear mount (brackets supplied)
• Weight - 2.8 kg (6.17 lb)
• Electrical
• Power Consumption max - 40W
• Recommended Fuse Rating - 5 A
• Supply Voltage - 12/24 V DC (10 - 31.2 V DC min - max)
• Environment
• Humidity - IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
• Operating Temperature Range - -15°C to 55°C (5°F to 131°F)
• Shock Vibration - 100,000 cycles of 20 G
• Storage Temperature Range - -20°C to 60°C (-4°F to 140°F)
• Waterproof rating - IPX6 and IPX7

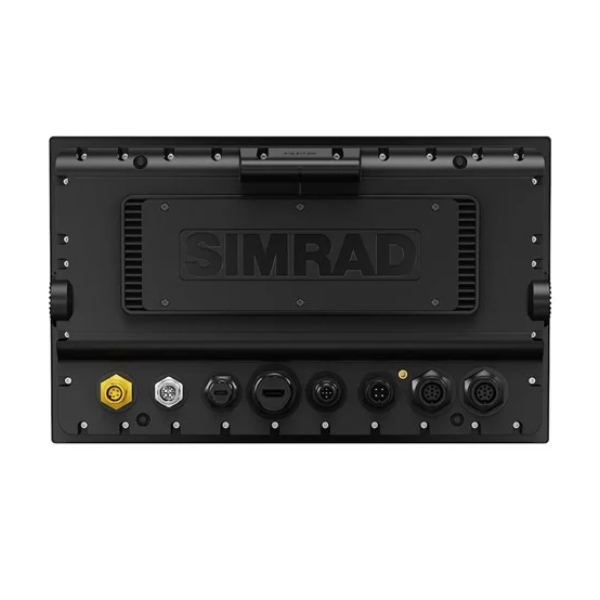

• Connectivity
• Bluetooth - Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
• Ethernet Ports - 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
• Connectivity Wi Fi - Wi-Fi 5 (IEEE 802.11ax)
• NMEA 2000 Connectivity - 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity - No
• SD Card Storage - 2x (microSD®, SDHC®), 1 x USB port
• Video - Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
• MFD
• AIS - Receive AIS data over NMEA 2000
• Autopilot - NAC-1, NAC-2, NAC3, NAC-D compatible
• Digital Switching - Czone / DDS
• GPS - 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)

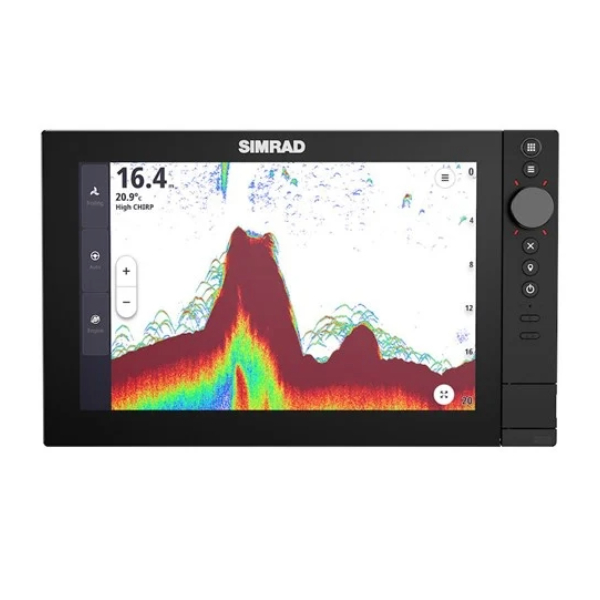

• Sonar Compatibility - No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports
• Waypoints, Routes, Tracks - 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
• Weather - Sirius XM via WM4 module (USA only)
• GPS
• Correction - 10 Hz high speed update (internal)
• GPS Receiver Channels - 32 Channels
• Position Accuracy - Horizontal Accuracy 3 m (9.8 ft)
• Update rate - 10Hz
• Autopilot
• Manouevres Turn Patterns - U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
• Steering Modes - Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
• Cartography
• Chart Format - C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
• Charts Supported - C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content)
• Other
• Interface - Hybrid multi-touch screen, buttons, and rotary knob
• Warranty Period - 2 Years
