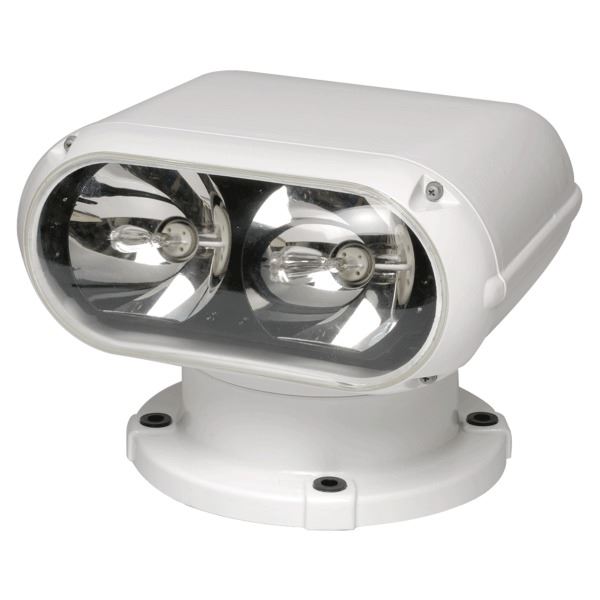

ACR RCL-300 R/C HID Searchlight - White - 12/24VTwin, 35-watt, Metal Halide HID lamps creates a narrow-beam searchlight that’s perfect for large sport yachts and mega-yachts, as well as large sport fish and commercial vessels. The RCL-300A Searchlight is made to improve safety at sea during night operation. It’s also simple to use with a commercial-grade joystick that has an IP 69K rating and illumination.

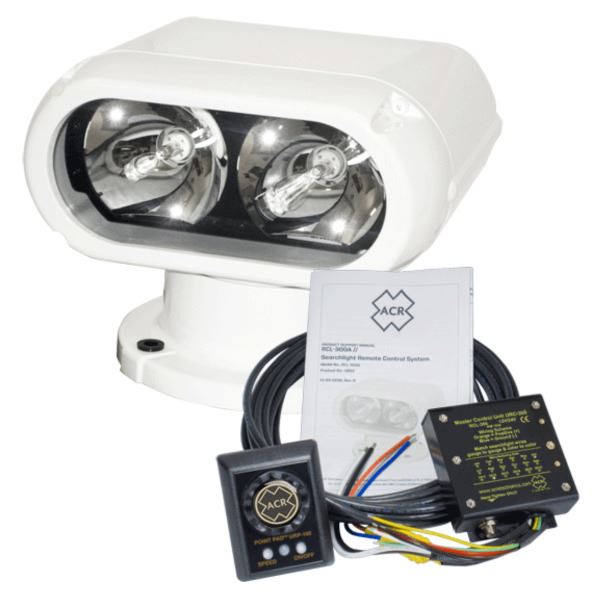

It’s gasketed and finished to stand up to the marine environment, and all functions can be operated using the supplied Point Pad™ and Master Controller (up to three remote controllers may be installed).
- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
- Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
- Rugged triple-primed and sealed, marine grade aluminum housing
- XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- Wiring harness included
- * Twin 35W, Metal Halide HID lamps provide over 500k CD each and 1 million effective CD when combined.
ACR Product Number
| 1933 | Size
| 12 x 13 x 9.3” (31 x 33 x 23.5 cm) | Weight
| 36 lbs (16.39 kg) | Material
| Marine grade cast aluminum, tempered glass | | Color | White | Operation
| Remote controlled Point Pad™ | Beam Angle
| 6° vertical, 6° horizontal | | Elevation Angle | 15° up, 30° down | Rotation
| 360° continuous | Rotation Speed
| Fast 30° per second, Slow 10° per second | | Elevation Speed | 3° per second | Lamp
| Twin 35W metal halide lamps 1,000 hours operating life | Input Voltage
| 12V-24VDC
| | Amp Draw | Start up - 25A @12V, Running - 8A @ 12V | Carton Dimensions
| 20.5” x 14.25” x 19.25” | Carton Weight
| 40 lbs | Footprint Diameter (without pedestal)
| 9” (23cm) |
|
