Scanstrut Ventura Series SC-V-S2 - SAE Solar ConnectionThe Scanstrut Ventura Series SAE Solar Connection is made for those who live off the grid and chase the horizon. Whether topping up with solar power at a remote basecamp, running a battery maintainer while the camper's parked in the wild, or charging gear from an overland trailer, Ventura delivers tough, reliable performance. - IP68, IP69K Waterproof (with lid closed)
- Standard 25mm (1.00”) Holesaw Installation
- Built-in gasket for a watertight seal?
- Easy install
- Spring loaded lid
- Marine-Grade 316 Stainless Steel Components
- 90° Holding Bump-Feature

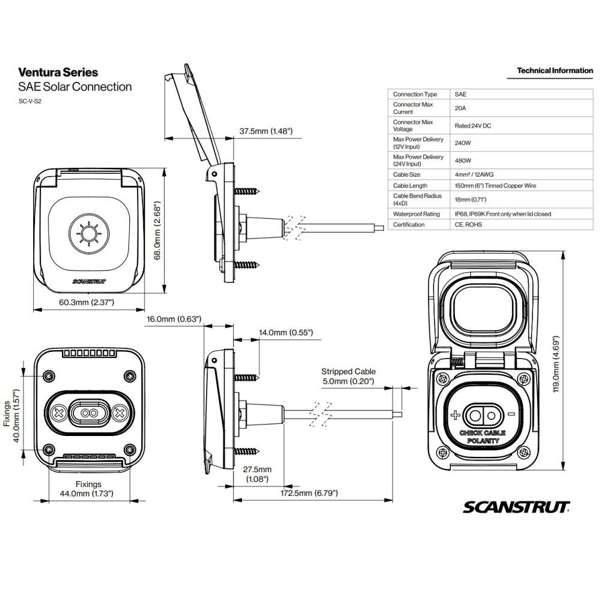

The Scanstrut Ventura Series SAE Solar Connection is made for those who live off the grid and chase the horizon. Whether topping up with solar power at a remote basecamp, running a battery maintainer while the camper's parked in the wild, or charging gear from an overland trailer, Ventura delivers tough, reliable performance. Need quick and dependable outdoor access to an SAE connection? From rocky trails to coastal escapes, it’s the ideal power partner for off-road adventures and outdoor living. Built with Scanstrut proven marine-grade innovation, each socket is UV-resistant, waterproof (IP68 & IP69K), and made from 316 stainless steel to thrive in rain, dust, and rugged terrain. Developed through extensive R&D, the Ventura Series features a slim, unified design that blends perfectly with exterior sockets for gas, water, and solar keeping your vehicle or rig looking sharp and fully equipped. Choose the Scanstrut Ventura Series for outdoor connectivity that’s dependable for your next adventure. Electrical Information- Connection Type: SAE
- Connector Max? Current: 20A
- Connector Max? Voltage: Rated 24V DC
- Max Power Delivery? (12V Input): 240W
- Max Power Delivery? (24V Input): 480W
- Cable Size: 4mm² / 12AWG
- Cable Length: 150mm (6”) Tinned Copper Wire
- Cable Bend Radius (4xD): 18mm (0.71”)
- Waterproof Rating: IP68, IP69K Front only when lid closed
- Certification: CE, ROHS
|
