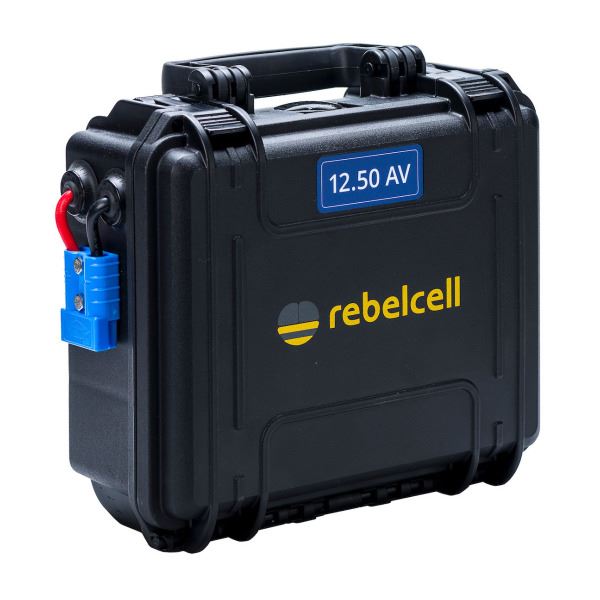

Rebelcell Outdoorbox 12.50 AV Portable Power Box - 12V / 50A - 634WhCompact and lightweight the Outdoorbox 12.50 AV is a robust IP65 portable power source with integrated 12V 50Ah 634Wh lithium battery for outdoor use. Features a built in display to show voltage and charge state, Blue ANEN Power Connector and 12V Cigar Socket with twin USB adaptor included. - Compact & Lightweight: The Outdoorbox 12.50 AV weighs just 3.7 kg, while it replaces a lead-battery pack up to 12V105Ah.
- Top Performance: More power and high thrust even when battery is nearly empty, deep discharge (up to 100%) without negative effects on performance or cycle life.
- Low Cost: Up to 50% lower battery cost per year compared to lead batteries.
- High Ease of Use: 1 click connection of trolling engine. Waterproof (IP65). Full recharge in less than 4 hours with 10A charger. 12V socket, separate USB charger + extra blue ANEN connector for trolling engine.
- Reliable and Long Life: Built-in abuse protection (against deep discharge, high voltage, high temperatures etc.) by BMS. Integrated 10A/ 60A circuit breaker. User life up to 10 seasons.
- Warranty: Two years.
Technical Specifications:
Chemistry - Lithium Ion
Voltage - 9.0V-12.6V (nominal 11.1V)
Capacity (C1-C20) - 50Ah
EqPb (comparable lead battery) - up to 105Ah
Nominal energy - 634 Wh
Dimensions (in mm) - 258 x 243 x 118
Energy density - 117 Wh/kg
Maximum continuous discharge - 50A
User life (#charges) (@80%DoD) - 1500
User life (#charges) (@100%DoD) - 1000
Dimensions (in mm) - 258 x 243 x 118
Weight - 5 kg
Connector - ANEN blue
Suitable Chargers - 12.6V10A Charger for outdoorbox / 12.6V20A Charger for outdoorbox
Charging Time - 12.6V10A - 6-7h / 12.6V20A 3-4h
BMS Specifications:
Charge temperature - 0°C - 45°C
Discharge temperature - -20°C - 60°C
Storage temperature - 0°C - 45°C
Maximum charge current - 20A (CC/CV)
Integrated cell balancing - Yes
Temperature protection - Yes
Maximum discharge current protection - Yes
High voltage protection - Yes
Low voltage protection - Yes

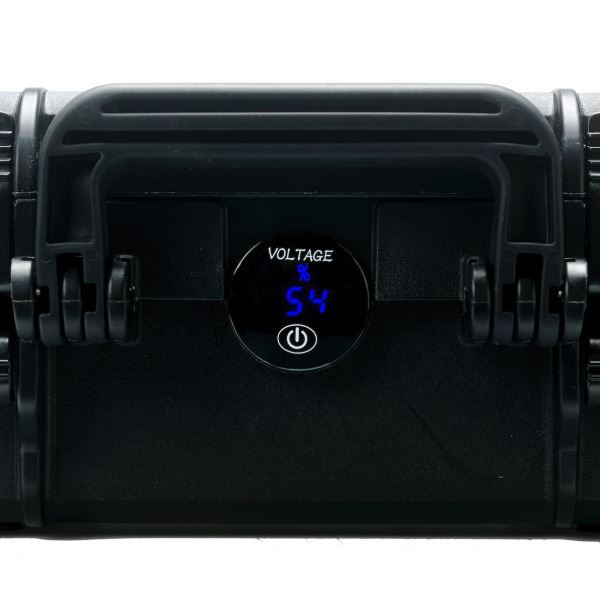

State of charge indicator - Yes, digital (% / voltage)

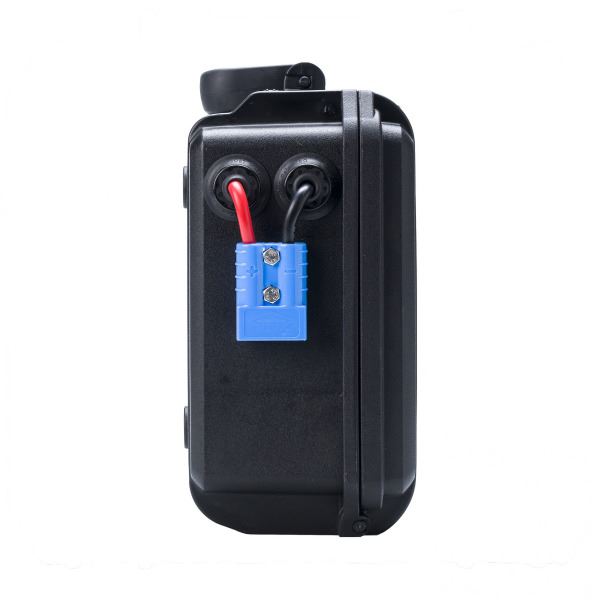

ANEN connector for e-motor - Yes (with 60A thermal fuse)
USB charger - Yes, separate

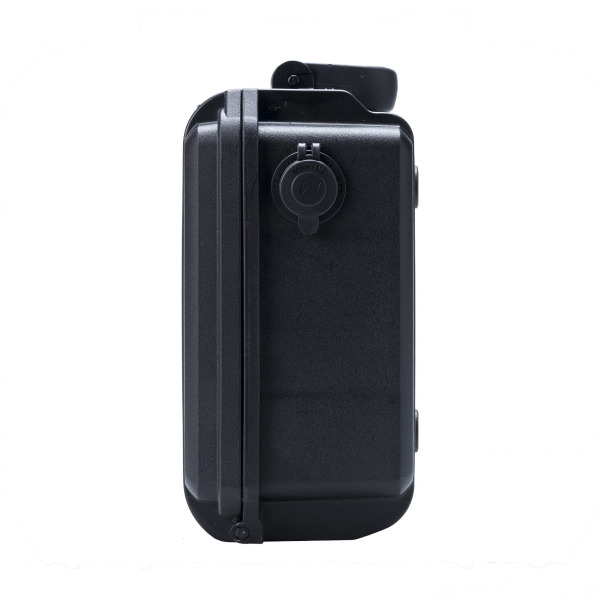

12V socket - Yes (with 10A thermal fuse)
Protection & Certifications:
Standards (IEC 529) - IP65
CE-certificate - Yes
Warranty - Two years
EAN - 7106623694886
Product code - 12050ODBAV
HS code (International / EU) - 850760 / 85076000
|
