Rebelcell 14.6V20A LiFePO4 Charger for PRO Battery - 14.6V / 20AThe Rebelcell 14.6V20A li-ion battery charger is the perfect choice for fast, safe and automatic charging of your Rebelcell 12V80 PRO. This charger includes a built-in charging profile (CC/CV) and can also be used indoors due to multiple safety systems (such as advanced high-frequency ‘switch-mode’ technology). This charger operates at 14.6V, has an output of 20A and charges the 12V80 PRO battery within 4-5 hours.
- Compatible with: Rebelcell 12V80 PRO battery
- Weight: 1.2 kg
- Safety of use: no risk of overcharging, protected against reverse polarity, short circuit, overvoltage and overtemperature
- Quick charging: full charging within 4-5 hours (12V80 PRO)
Technical Specifications: Technology - Automatic charger with advanced high frequency switch mode power supply technology
Efficiency - >85%
Size (in mm) - 180 x 90 x 60
Weight - 1.0 kg
Weight package - 1.2 kg
AC input - 230 Volt 50-60Hz
Power - 360 W
Charging voltage - 14.6V
Maximum charge current - 20A
Charging profile - Pre-charge/CC/CV/Cut-off
Connector - M8 tongue connector
Charge status indicator - Yes, via LED
Minimal battery voltage - 3V
Works at temperature - -10°C to +40°C
Compatible Batteries - 12V80 PRO battery
Charging Time - 4-5h

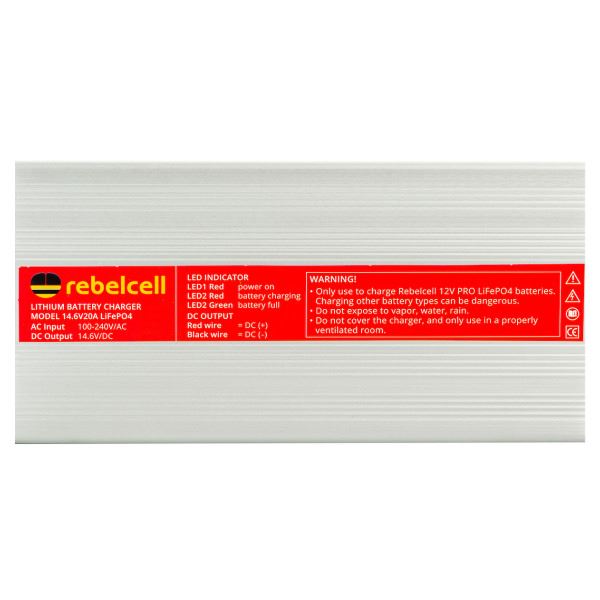

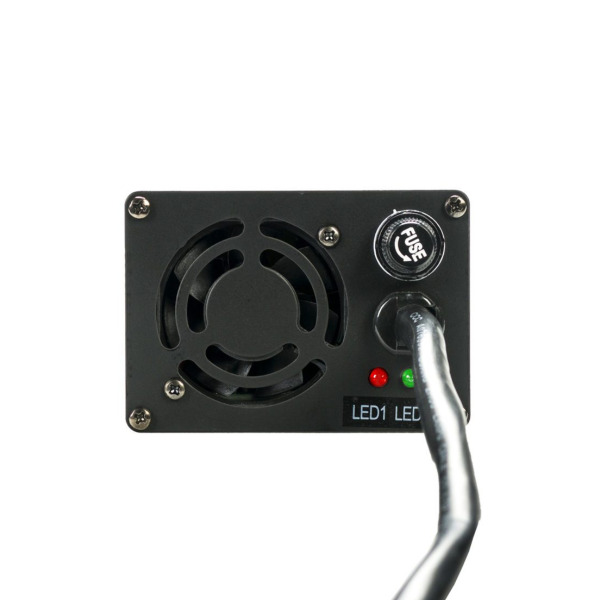

Electronics & Charging Indicator:
LED 1 - Red: charging
LED 2 - Red (charging on) and green (fully charged)
Over charge protection - Yes, 'auto power off' when charge process is completed
Reverse polarity protection - Yes
Short circuit protection - Yes
Overvoltage protection - Yes
High temperature protection - No
Cooling - Yes, forced ventilation with fan to cool charger
Heat sink - Yes, the outside case of the charger functions as heat sink
Certification & Warranty: Warranty - Two years
Certification - CE, RoHS
Standards (IEC 529) - IEC 61000-3-2:2019
EAN - 7106623695746
Product code - LC14V20REPR
HS code (International / EU) - 850440 / 85044060
|
