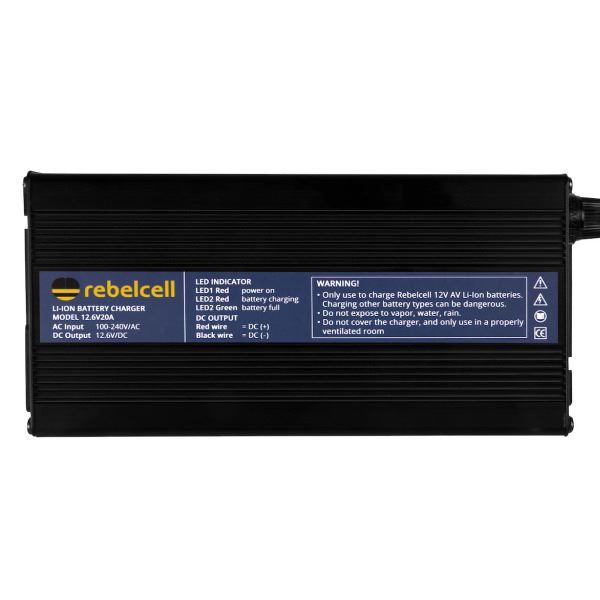

Rebelcell 12.6V20A Lithium-Ion Battery Charger - 12V / 20APowerful 12.6V20A li-ion battery charger to quickly and safely charge Rebelcell 12V50AV / 12V70AV / 12V100AV / 12V140AV batteries.
- Compact & Lightweight: The charger weighs just 1.2 kg.
- High Ease of Use: Lightweight and compact, quick recharge.
- Reliable: Built-in protection: no risk for overcharging. Charger switches off automatically when the battery is fully charged. Protected against reverse polarity.
- Warranty: Two years.
Technical Specifications:
Technology - Automatic charger with advanced high frequency switch mode power supply technology
Efficiency ->85%
Size (in mm) - 210 × 90 × 65
Weight - 1 kg
Weight package - 1.2 kg
AC input - 100-240VAC 60/50HZ
Power - 50 Wh
Charging voltage - 12.6 ± 0.1V
Maximum charge current - 20A
Charging profile - Pre-charge/CC/CV/Cut-off
Connector - M8 tongue connector
Charge status indicator - Yes, via LED
Minimal battery voltage - 3V
Works at temperature - -10°C to +40°C
Compatible Batteries - 12V50 AV / 12V70 AV / 12V100 AV / 12V140 AV
Charging Times - 12V50 AV - 3-4h / 12V70 AV - 4-5h / 12V100 AV - 5-6h / 12V140 AV - 9-10h
Electronic Specifications:
LED 1 Function - Red: charging
LED 2 Function - Red (charging on) and green (fully charged)
Over charge protection - Yes, 'auto power off' when charge process is completed
Reverse polarity protection - Yes
Short circuit protection - Yes
Overvoltage protection - Yes
High temperature protection - Yes
Cooling - Yes, forced ventilation with fan to cool charger
Heat sink - Yes, the outside case of the charger functions as heat sink
Protection & Certifications:
Warranty - Two years
Certification - CE, RoHS
Standards (IEC 529) - 60950
EAN - 7106623690727
Product code - LC12V20REAV
HS code (International / EU) - 850440 / 85044060
|
