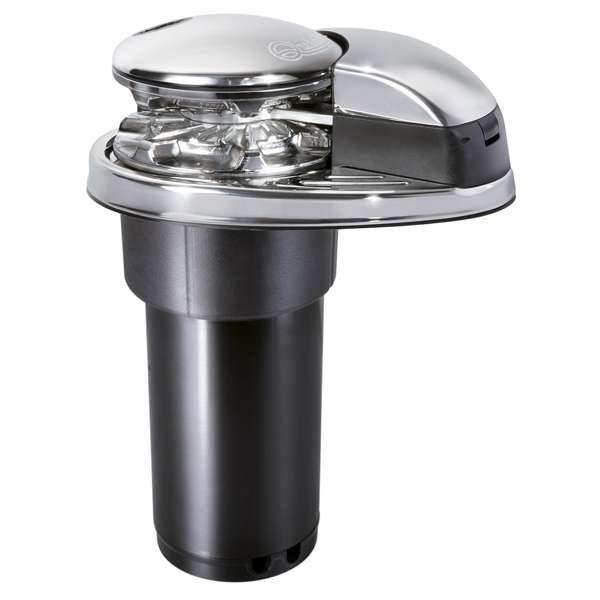

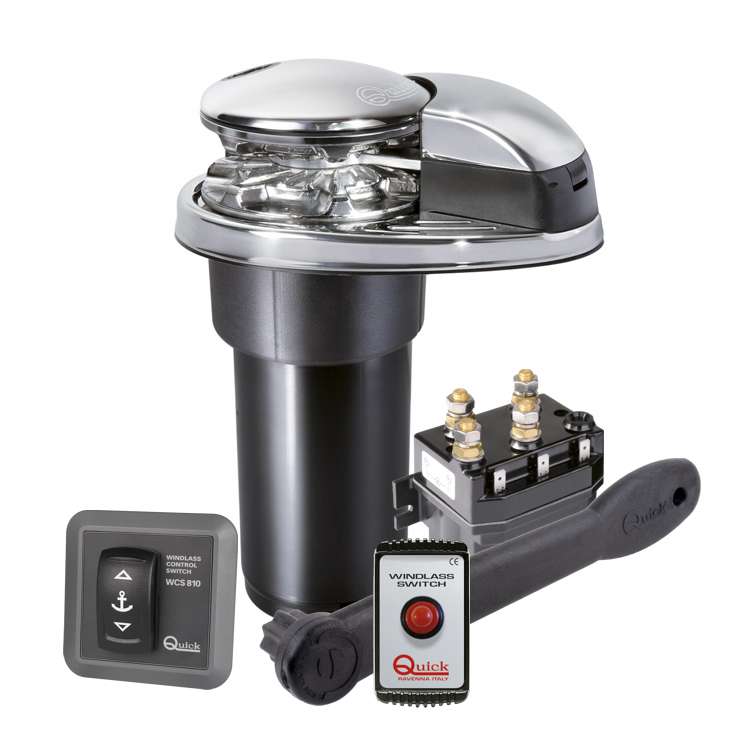

Quick DP2E 1000 Vertical Windlass Kit 12v 800w 8mm (Q-DP2E151103K)The Quick DP2E Prince 1000 vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" rope. This is the kit version of the 1000, this kit includes a contactor unit, nylon handle, rocker switch and a hydraulic magnetic circuit breaker. Specifications: | Primary Construction | Stainless Steel | | Suitable For | Chain and Rope | | Boat Size | 7 to 12 metres in length | | Gypsy Size | 8mm | | Brand | Quick | | Series | Prince DP2E | | Model | 1000 | | Voltage Description | 12V DC | | Wattage | Motor Power: 800W | | Working Load | 95kg (209 lb), Maximum: 290kg (639 lb) | | Maximum Pull Load | 820kg (1807.8 lb) | | Maximum Chain Speed | 22.5 m/min (73.8 ft/min), At Working Load: 15.2 m/min (49.9 ft/min) | | Amps Description | Current Absorbtion At Working Load: 84A | | Fuse | 80A Protection Circuit Breaker | | Contents | Contactor Units, Nylon Handle, Rocker Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual | | Height Description | 287.5mm (11-5/16") | | Width | 196mm (7-23/32") | | Depth | 145.4mm (5-23/32") | | Size | Motor Cable: 25mm2 (AWG3) |
|
