MaxPower CT45 Electric Bow Thruster 12V - 39kgf - 125mm Diameter

The CT45 is ideal for motor boats and deep footed sailing yachts ranging from 19’-36'. Manufactured using composite materials, the CT45 has a 125mm diameter tunnel.

As small and compact as the CT35, the CT45 benefits from an increased thrust rating up to 40/88 (kg/lbs) thanks to its twin propellers.

Easy to install and maintenance free, this model integrates all the unique features common to Max Power’s electric tunnel thrusters.

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

Details:

  • Typical boat size: 20 - 34’
  • Tunnel diameter (inside): 125mm
  • Tunnel thickness: 4 - 5mm
  • Nominal power voltage: 12V
  • Control system voltage: 12v
  • Weight: 9.65kg
  • Performance data:
  • Test power voltage: 10.75V
  • Amperage: 300 Amps
  • kW: 3.23
  • Hp: 4.3
  • Thrust kg / lbs: 40 / 88
  • Duty Cycle (S2):3min

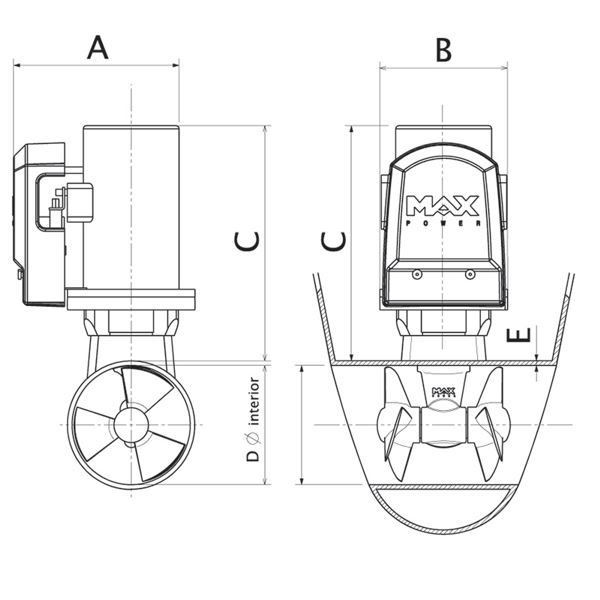

Dimensions:

A 190(mm)

B 140(mm)

C 210(mm)

D 125(mm)

E 4 - 5(mm)
