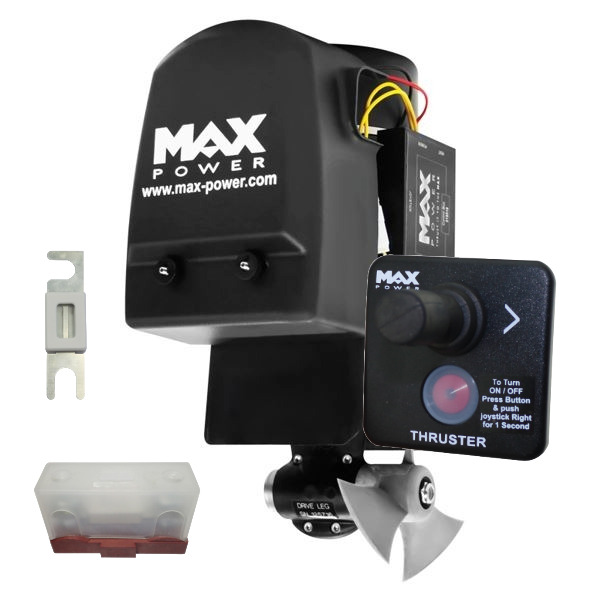

MaxPower CT35 Electric Bow Thruster Basic Bundle Pack - 12V - 35kgf - 125mm

MaxPower CT35 Electric Bow Thruster Basic Bundle Pack - 12V - 35kgf - 125mm

Manufactured using composite materials, the CT35 is a single propeller bow thruster with a 125mm diameter tunnel and thrust rating up to 35/75 (kg/lbs).

The smallest in the Max Power electric tunnel bow thruster range, the CT35 is ideally suited to motor boats and deep footed sailing yachts that are between 17ft - 34ft.

Like all Max Power electric tunnel bow thrusters, the CT35 is easy to install, maintenance free, and integrates all the unique features common to this range.

Details:

• Typical boat size: 17 - 31’
• Tunnel diameter (inside): 125mm
• Tunnel thickness: 4 - 5mm
• Nominal power voltage: 12V
• Control system voltage: 12v

• Weight: 9.6kg
• Performance data:
• Test power voltage: 10.75V
• Amperage: 250 Amps
• kW: 2.69
• Hp: 3.6
• Thrust kg / lbs: 35 / 77
• Duty Cycle (S2):3min

Dimensions:

A 190(mm)

B 140(mm)

C 210(mm)

D 125(mm)

E 4 - 5(mm)
