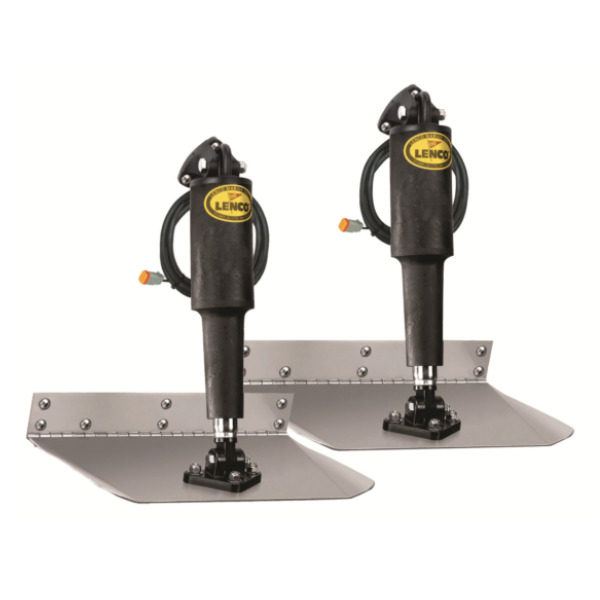

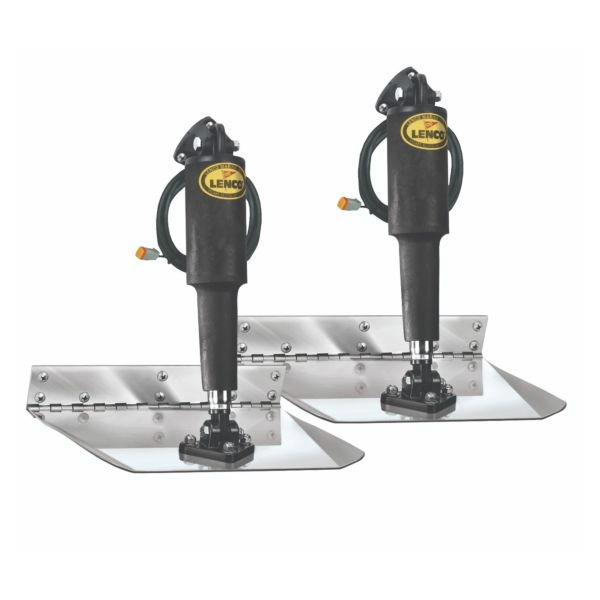

Lenco Performance Trim Tab Kit - No Switch - 9in x 9in / 22.86 x 22.86cmOur first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.
L" X W": 9" x 9" (22.86 x 22.86 cm)
Boat Length: 13' - 20'
Hinge Height: 2" (5.1 cm)
Min.Transom Height: 13.5" (34.3 cm)
(2) 12-gauge stainless steel Electro-Polished blades
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Lenco owner's/installation manual
Stainless steel mounting hardware |
