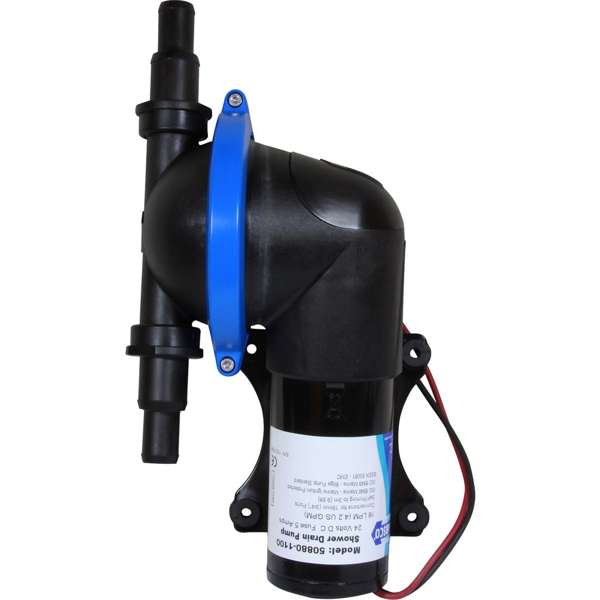

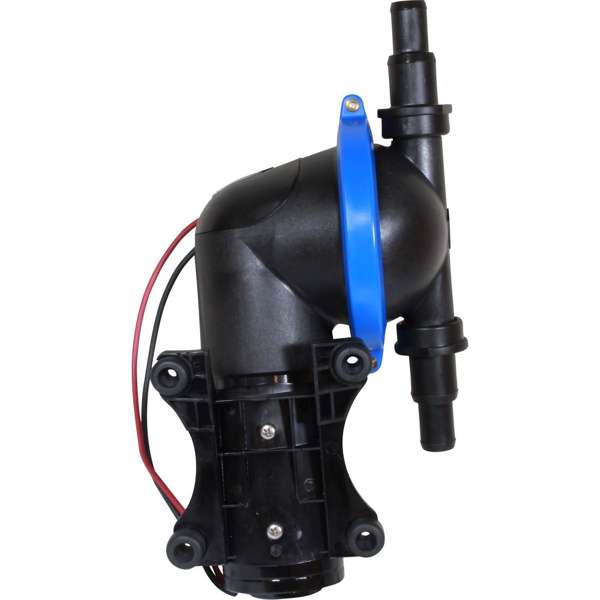

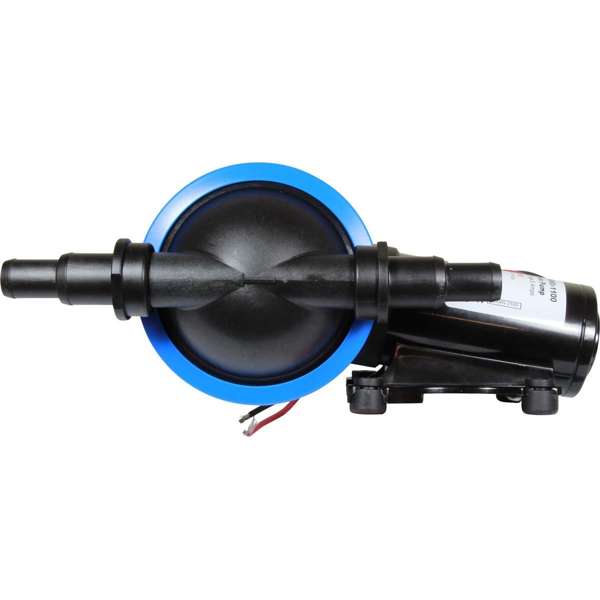

Jabsco 50880-1100 Self priming diaphragm pump.
Robust, single diaphragm and joker valves make this pump ideal for sink and shower drain applications.
The design also features multi-positional 19mm (3/4") id ports.
The single diaphragm design allows extended dry running, and can self prime up to 3 metres vertical lift.
Output is up to 16 litres/minute (3.5 gallons per minute) Maximum recommended head is 6 metres.
These pumps are extremely quiet, and rated for up to 30 minutes continuous running.
Specifications:
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, Built to ISO15083 Spec, Meets BSEN50081 (Electro Magnetic Compatibility) |
| Flow Rate Description | 960 LPH (253 US GPH) at 1m head |
| Fuse | 5A |
| Height Description | 132mm (5.2") |
| Length | 294mm (11.6") |
| Series | 50880 Series |
| Voltage Description | 24V DC |
| Width | 159mm (6.25") |
| Brand | Jabsco |
| Automatic Bilge Pumps | No |
| Hose Size | 19mm / 3/4", 25mm / 1" |
| Maximum Recommended Head | 6 Metres (19.6 Feet) |
| Model | 50880-1100 |
| Replaces | Jabsco 31705-0094 |
| Self Primes up to | 3 Metres (9.8 Feet) |
| Inlet Outlet | 19mm (3/4"), 25mm (1") ID hose |
| Amps Description | 2.5A |
