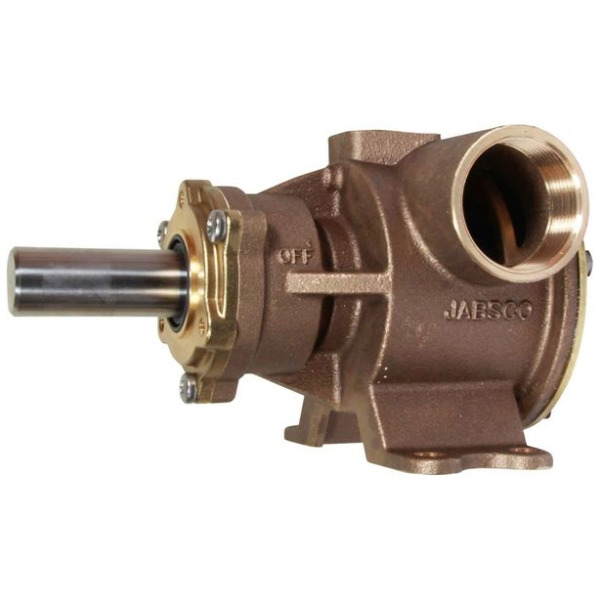

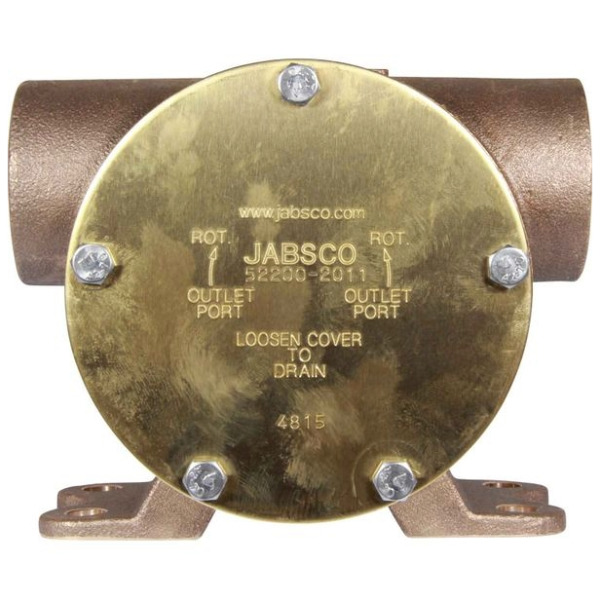

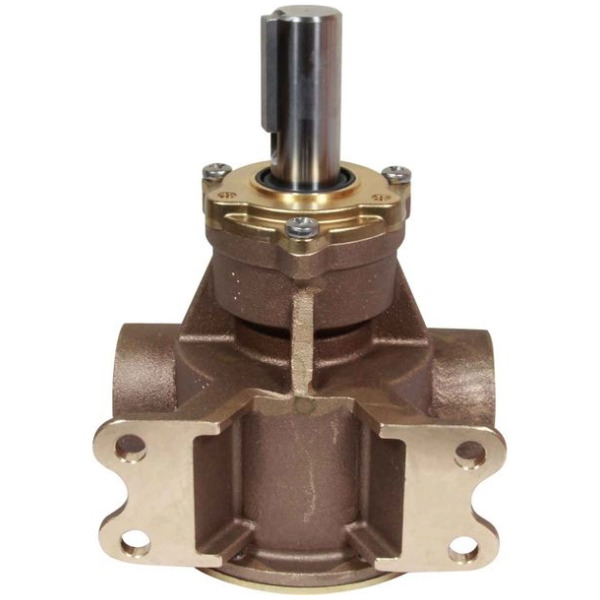

Jabsco 52200-2011 Engine Cooling Pump - Bronze - Size 200 - Foot Mounted - 1.5in BSP PortsThe Jabsco 52200-2011 engine cooling pump has 1-1/2" BSP connections and is suitable for foot mounting.
This pump is suitable for the following engines: Thornycroft 760 / AVT 1100, Kelvin DB Series and Schwarting Mercedes S 424.
The Jabsco 52200-2011 pump replaces Jabsco 6400-207 and 52200-2001 pumps and Johnson 10-13021-1 pumps.
Specifications:
- Flow Rate-200 LPM at 1500 RPM
- Height-93mm to port centre
- Length-203mm
- Series-52200 Series
- Size-200 Pump
- Type-Engine Cooling Pumps
- Width-150mm
- Brand-Jabsco
- Suitable For-Thornycroft
- Warranty-1 Year
- Drive Type Description-Pulley Driven
- Impeller Fitted-JAB-17935-0001
- Model-52200-2011
- Mounting Description-Pedestal Mount
- Replaces-Jabsco 6400-207 & 52200-2001 Pumps, Johnson 10-13021-1 Pump
- Self Primes up to-3 Metres (9.8 Feet)
- Inlet Outlet-1-1/2" BSP Female
|
