Icom MR-1010RII 10.4 Inch 4kW Colour Marine Radar System

Marine radar with simplified ARPA and wide viewing angle colour TFT LCD. Has 36 nautical mile range with 4kW output radome scanner.

Safety Features

Connect the MR-1010RII to a DSC radio to use the DSC information function. When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Plot up to 20 DSC messages on the radar echo. If Man Overboard (MOB) position information is transmitted from a DSC handheld transceiver (i.e. M94D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation. Connect the MR-1010RII to an external AIS device to use the AIS overlay function. When connected (i.e. M605, M510 AIS and M506 AIS), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.

Large Color Display

The MR-1010RII gives approximately a 176° viewing angle. The color RFT LCD (480x640 dots) display offers bright vivid echos with 16 steps gradient intensity. Easily adjust the screen color (day, night and user settings) with the "BRILL" button. In addition, the auto hide information function enlarges radar echoes to size. Configure various settings through the MR-1010RII’s visually intuitive operation. The language setting is selectable from English, Indonesian, Korean, Spanish, Thai and Vietnamese. The large eight-direction cursor key provides smooth operation even when wearing gloves.

Additional Features

  •     Simplified ARPA function helps prevent collision risk with other vessels or objects
  •     TLL (Target Latitude Longitude) function
  •     True trail function
  •     10.2-42V wide DC input to prevent over voltage damage
  •     Two user programmable alarm zones

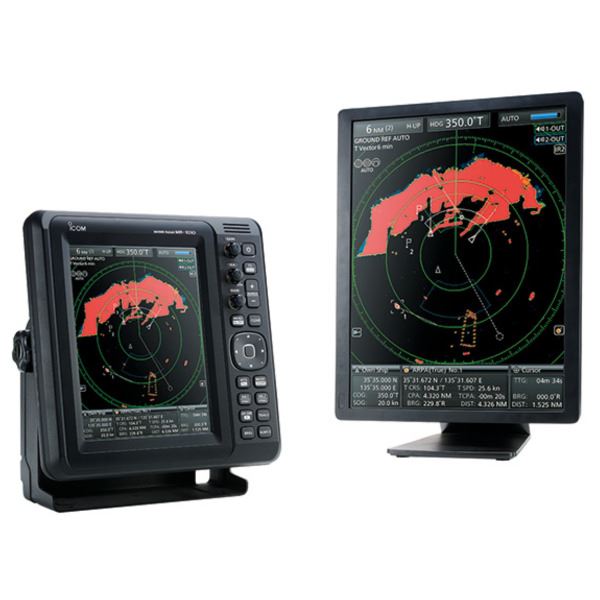

  •     Optional video output unit (2nd Display not supplied)

Specifications

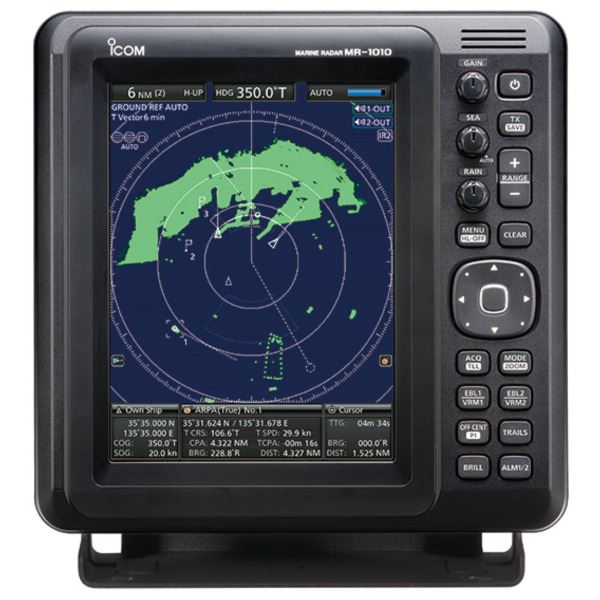

Display Unit

Display type
 10.4-inch Color TFT LCD
Resolution
 480 × 640 dots
Type of emission
 16K0G3E (FM)
Minimum range
 25 m; 82 ft (at 1⁄8 NM range)
Maximum range
 36 NM
Range scales

 NM-1/8, 1/4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36

 KM-1/4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48

Preheat time
 90 seconds
Power supply
 10.2–42 V DC
Power consumption
 (at zero wind velocity )     55 W (approximately)
Usable temperature range
 –15°C to +55°C; +5°F to +131°F
Input data format
 NMEA 0183, N+1, AUX, IEC61162-2
Output data format
 NMEA 0183

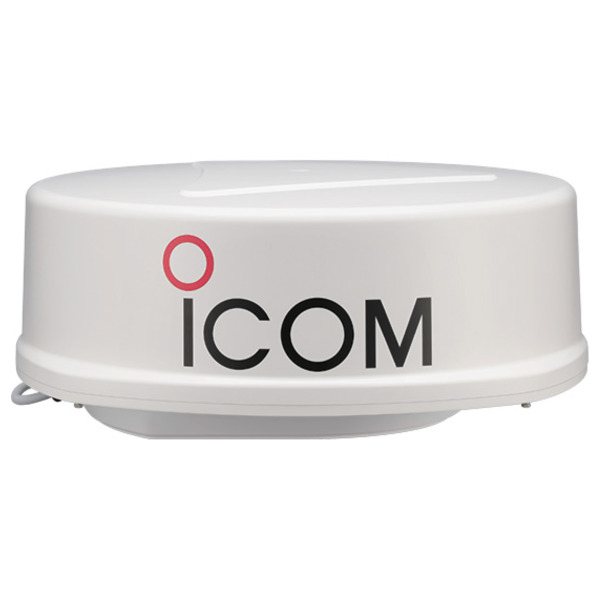

Scanner Unit

Type
 60 cm; 2 ft radome scanner
Rotation speed
 24, 36 rpm typ.
Horizontal beamwidth
 4° typ.
Vertical beamwidth
 22° typ.
Sidelobe
 –22 dB typ.
Usable temperature range
 –25°C to +70°C; –13°F to +158°F
Usable humidity range
 Less than 95% (at 40°C; +104°F)
Frequency
 9410 MHz ±30 MHz
Modulation
 P0N
Peak output power
 4 kW
Pulse-width/repetition rate
 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 350 ns/720 Hz, 900 ns/720 Hz
Modulator
 FET switching
Intermediate frequency
 60 MHz
IF bandwidth
 10 MHz, 3 MHz
Tuning
 Auto/manual selectable
Supplied system cable
 15 m; 49.2 ft; OPC-2341

All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

  • Display unit - IPX4 (Water resistance)
  • Scanner unit - IPX6 (Powerful jet water protection)
