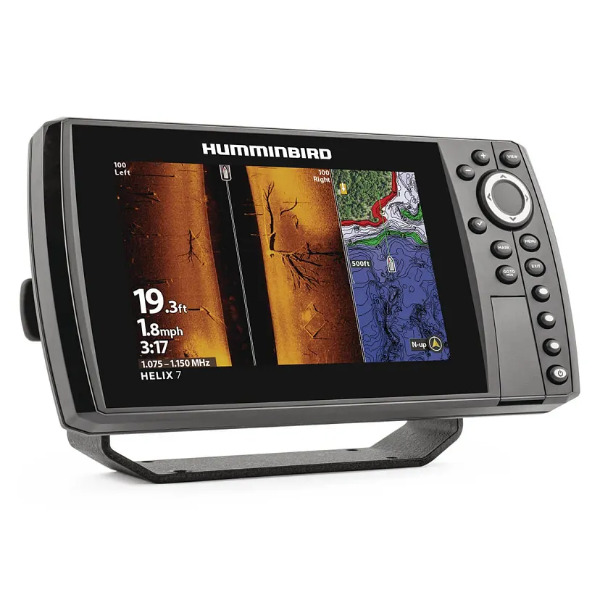

Humminbird Helix 7 CHIRP MSI GPS G4N DisplayThe HELIX 7 MEGA SI GPS G4N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.
Keypad Control
Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
CHIRP Side Imaging
Filter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat.
CHIRP Down Imaging
Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
Dual Spectrum CHIRP Sonar
See what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap
Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible
Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
AutoChart Live
Create real-time maps of your fishing spots with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
General
Model - HELIX 7 MSI GPS G4N
Series - HELIX
Compatible With - Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, AutoPilot, One-Boat Network

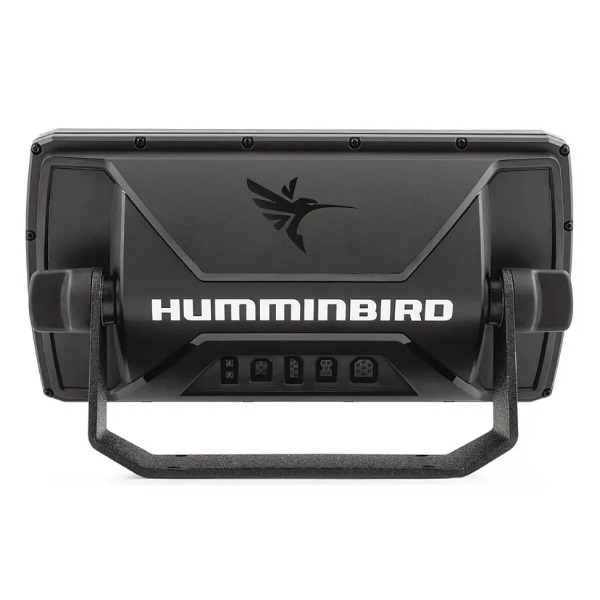

Mount-Standard - Gimbal
Mount-Standard Size - 10.54 in W x 5.8 in H x 3.68 in D
Mount-Optional - In-Dash Mounting Kit
Mount-Optional Size - 10.54 in W x 5.44 in H x 1.13 in D
Upgradable Software - Yes
UPC - 0082324058172
Product Code - 411940-1
Warranty - One-Year Warranty
Features - Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging
Display
Display Size - Diagonal - 7 in
Display Pixel Matrix - 1024H x 600V
Display Type - Color TFT
Display Colors Grayscale - 16-Bit
HDMI Compatible - No
Sonar
Transducer Included - XNT 9 HW MSI 150 T
Transducer Mount Location - Transom
Sonar-Standard - Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
Sonar-Coverage - 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional - 53 kHz, 50/Low Airmar CHIRP
Live Sonar-Coverage - 20 degrees x 120 degrees
CHIRP - Frequencies Supported - Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported - 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar - 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported - 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz)
Depth-Down Imaging - 75 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side) - 800 ft (455 kHz), 250 ft (MEGA)
Interface - Keypad Control
Screen Snap Shot - Included
Sonar Recording - Included
GPS Chartplotting - Included
GPS Receiver - Internal
GPS Trackplotting - Included
Waypoints, Routes, Tracks/Points - 2,750, 47, 50/20,000
NMEA2000 - Included
Target Separation - 2.5 in
Interference Rejection - 6 Modes
Noise Rejection - 6 Steps
Custom Digital Readout - Yes
Custom View Selections - No
Speed - Included
Temperature - Built In
Temperature Alarm - Yes
Temperature Graph - Yes
Technical Details
Memory Card Slot - Dual Micro SD
Power Draw - 800 mA
Power Input - 10.8-20 VDC
Power Output Peak-to-Peak - 4000 Watts
Power Output RMS - 500 Watts
360 Imaging Compatibility - Yes
MEGA Live Compatibility - Yes
Humminbird Basemap - Included
LakeMaster Compatibility - Yes
CoastMaster Compatibility - Yes
Navionics Gold/HotMaps Compatibility - Yes
Navionics Platinum+ Compatibility - Yes
Platinum Compatibility - Yes
Minn Kota i-Pilot Link Compatibility - Yes
Minn Kota Talon Shallow Water Anchor Compatibility - Yes
Radar Compatibility - Yes
5-Port Ethernet Switch Compatibility - Yes
AIS Compatibility - Optional
Autopilot Compatibility - Yes
Heading Sensor GPS Compatibility - Yes
View Preset Keys - Yes
X-Press Menu System - Yes
Dimensions & Weights
Length 3.08 in | 7.82 cm
Height 5.44 in | 13.82 cm
Width 10.54 in | 26.77 cm
Weight 2 lb 6.4 oz | 1.08862 kg |
