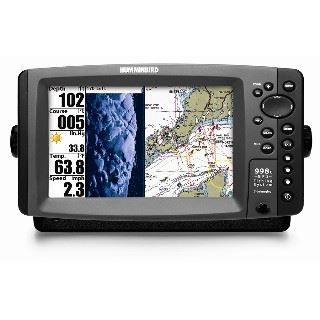

Fishfinders: Humminbird 998CX-SI Side Imaging Combo Sounder Plotter (998CX-SI)

Humminbird 998CX-SI Side Imaging Combo Sounder Plotter (requires Transducer)

The 998c SI Combo features a brilliant color, wide-screen 480V x 800H 8" display, Side Imaging and DualBeam PLUS sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in ContourXD mapping, and advanced Fishing System capabilities. Includes unit cover. Maximize your angling experience with the Humminbird 998c SI Combo fishfinder GPS system.

Display

8.0" diagonal
480V x 800H
16:9 Color TFT

Cartography

Navionics Compatible
LakeMaster Compatible

Memory

Waypoints: 3,000
Routes: 50
Tracks: 50 w/20,000 points each

Sonar

DualBeam PLUS

200 kHz / 20° @ -10db
83 kHz / 60° @ -10db
Depth: 1500 ft.
(3000 ft with optional 200/50 kHz transducer for deepwater use)

HD Side Imaging & Down Imaging

455 kHz / (2) 86° @ -10db
800 kHz / (2) 55° @ -10db
Depth: 150 ft.

180° total coverage

Power Output

1000 Watts (RMS)
8000 Watts (Peak-to-Peak)

GPS Features

50 Channel GPS
Trackplotting
Chartplotting
GPS Speed
Humminbird ContourXD
Navionics Platinum SD Format(optional)

Display Size: 8.0" diagonal
Display Pixel Matrix: 480V x 800H
Display Type: 16:9 Color TFT
Display Colors/Grayscale: 65,000 Colors
DualBeam PLUS
Sonar Coverage
200 kHz / 20° @ -10db
83 kHz / 60° @ -10db
HD Side Imaging & Down Imaging
Sonar Coverage
455 kHz / (2) 86° @ -10db
800 kHz / (2) 55° @ -10db
Sonar Optional: QuadraBeam PLUS
Target Separation: 2.5 inches
Power Output (RMS): 1000 Watts (RMS)
Power Output (Peak to Peak): 8000 Watts (Peak-to-Peak)
Temperature: Included
Speed: GPS Speed Included
Backlight: Yes
Waterproof: Yes
Mount: Gimbal
Unit Size: 11" W x 6" H x 4" D
Mount: In-dash
Unit Size: 11" W x 6" H x 2" D
Transducer - Standard: XHS-9-HDSI-180-T
Transducer Mounting: Transom
Power Input: 10-20 VDC

HUMMINBIRD Humminbird 998CX-SI Side Imaging Combo Sounder Plotter
