Veratron OL43 4.3 inch Multifunctional Colour Instrument Display - BlackExperience seamless integration and real-time monitoring with the OL 43. Whether tracking engines, batteries, tanks, or navigation data, this 4.3” optically bonded IPS TFT display ensures perfect readability, even under direct sunlight. With support for NMEA 2000, J1939 CAN, plus analog inputs and HTML5-ready Ethernet, the OL 43 is an all-in-one solution for modern marine instrumentation.
The OL 43 Multifunction Display redefines clarity and control in marine environments. Featuring a 4.3” optically bonded IPS TFT screen with anti-glare mineral glass, it delivers brilliant visibility even in harsh conditions. Designed for seamless integration, it supports NMEA 2000 and SAE J1939 CAN protocols, analog sensors, and Ethernet connectivity.
With lightning-fast startup, customizable multilingual GUI, and robust IPX7-rated housing, the OL 43 is built to perform. Whether monitoring engines, tanks, batteries, or navigation data, this display offers intuitive interfaces, graphical insights, and real-time alarms. Its compact 85mm round form factor and flame-retardant housing make installation simple and safe.
Optically bonded 4.3” IPS TFT display with anti-glare coating
Resolution: 480 x 272 pixels
Luminance (typical): 850cd/m²
NMEA 2000 and SAE J1939 CAN ports
Connectivity: NMEA 2000, EasyLink, SAE J1939, Bluetooth, LIN
IPX7 protection class / Exposed device
Reliable in high-temperature environments
Installation in 85mm panel cuts via spinlock
Fresh redesigned customizable user interface

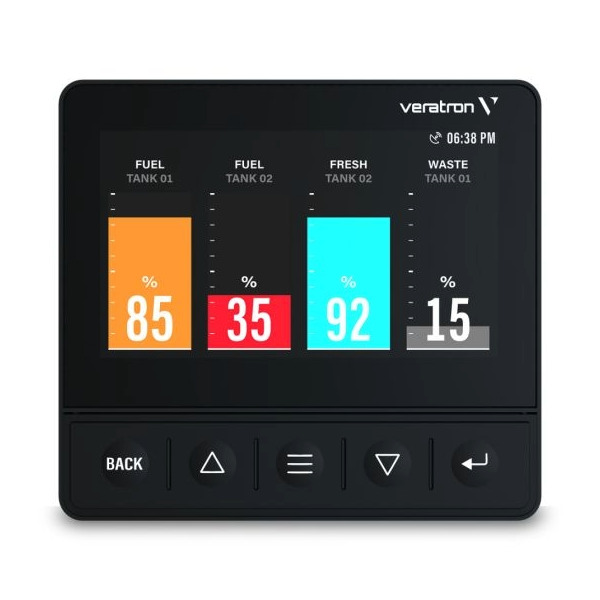

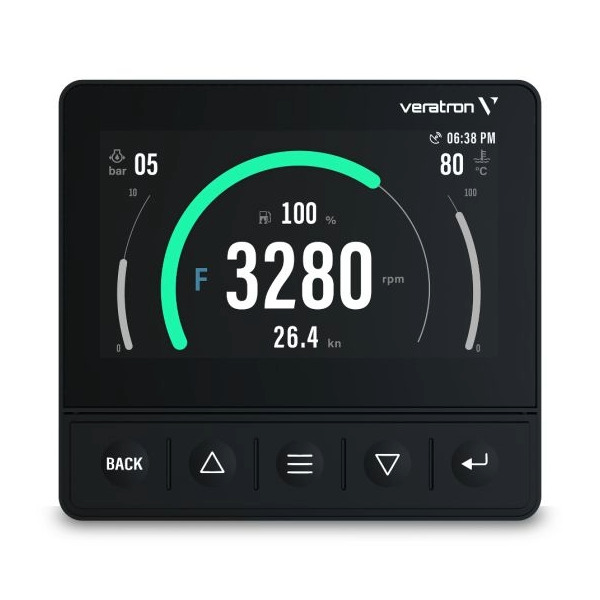

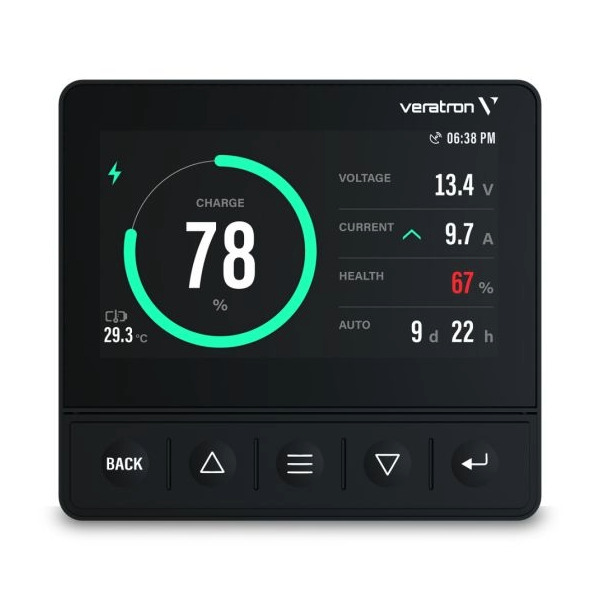

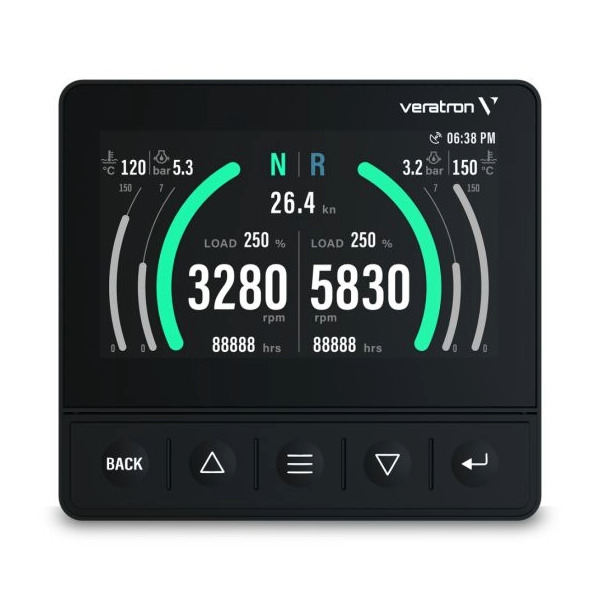

Dedicated screens for engine, tanks, battery, and much more
Full engine diagnostic and local alarms setup
Analogue sensor inputs with NMEA converter
Lightning-fast startup upon power on |
