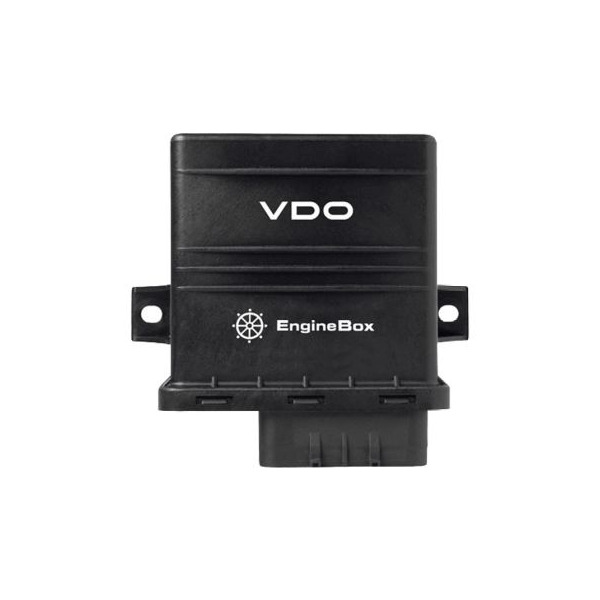

Veratron EngineBox J1939 to NMEA2000 Gateway - Dual Engine The EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA2000 and a J1939 CAN port. The EngineBox can also be used on older, completely analogue engines, thanks to the analogue input ports provided and designed for: RPM data, 0-400 Ohm sensors and 4-20mA sensors.
EngineBox is available in 2 versions: Single Engine and Dual Engine. The Dual Engine version is designed with double frequency and resistive inputs. This allows customers simplified installation wiring, reduced commissioning time and the required installation space.
The EngineBox has to be set up using an intuitive PC Configuration Tool making it easy for programming the inputs (delivered free of charge).
The EngineBox is designed to be installed also in hazardous areas (for additional information please check the technical characteristics described in the installation manual).
Nominal voltage: 12V / 24V
Operating voltage: 8 - 32 V
Protection class: IPX9k-f
Dimensions: 150 x 105 mm
Front ring: Brushed stainless steel
Front lens: Mineral glass
Display: Color IBN + 1.44" TFT optically bonded
Analog inputs: 8x resistive / 2x frequency / 4x voltage / 2x 4-20mA
Digital inputs: 2x SAE J1939, NMEA 2000
DeviceNet M12 5 pins, Micro-pack MW1000 (with fitting cable) |
