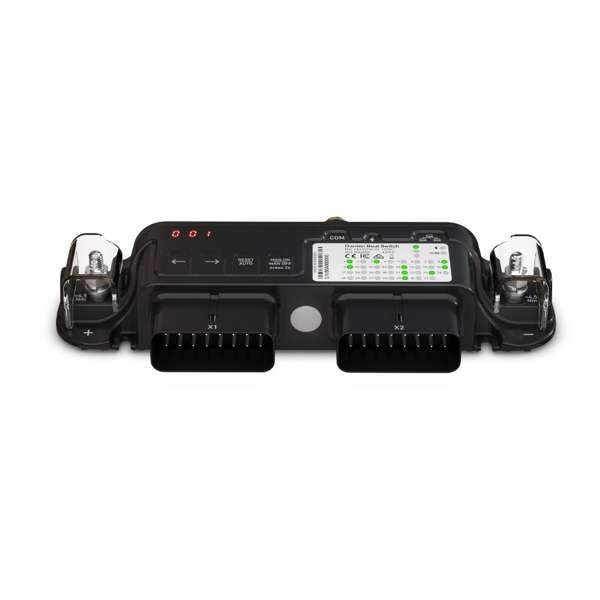

- Dimensions: 9.1″ x 4.2″ x 1.5″ (230 x 106 x 38 mm)
- Weight: 14.1 oz (400 g)
- Enclosure water rating: IP65
- Communication: CAN-bus NMEA 2000 network, LEN-0
- Output High side: 13 ch 10A, 7 ch 5A
- Ground contact switch input: 15
- Bilge pump monitor: 2
- Analog Input Volt: 3 @ 0-16 V +/-1%
- Analog Input Resistance: 2 @ 0-1500 ohm +/- 5%
- Power Supply Maximum current: 50A
- Power off current consumption: 60mA
- Supply voltage: 9-16VDC
- Connector NMEA 2000: Micro 5-pin M12 male
- Connector Channels: Molex MX150 L 16 circuits
- Power terminals: M6 bolts

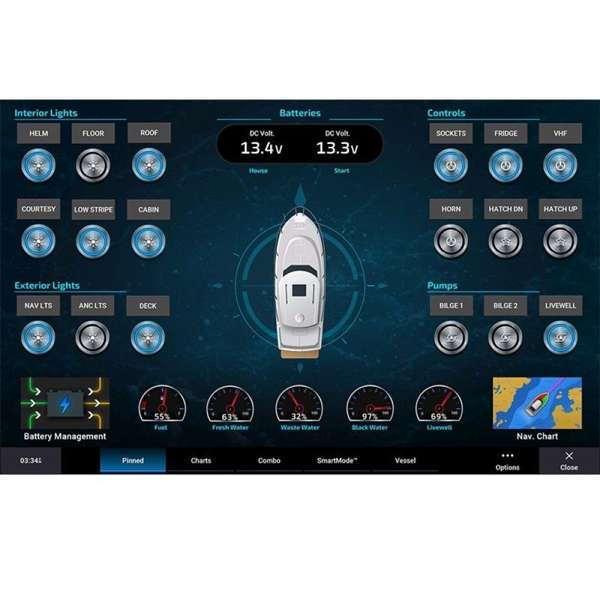

Quality Switching, Simple Installation Get the integrated-boat experience with digital switching that allows the operation of onboard electrical functions right from the GPSMAP or ECHOMAP chartplotter.
- Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring.
- Operate lights, pumps, horn and more. Just tap a compatible chartplotter.
- Fill up or empty out? See levels in four tanks - such as fuel, freshwater, greywater, blackwater and livewell.
- See system status. Monitor battery voltage, bilge pump operation and more.
- Set it up any way. Position and name switches with the easy-to-use interface.
- Retrofit into any boat. It requires no special tools or configuration.
Get Integrated Electrical Control All-In-One: Replace existing two-element systems - fuse box and switches - for easier control and operation of onboard functions.
Digital Control: Get control and protection of up to 20 circuits via a Garmin chartplotter rather than a physical button or switch.
On/Off Switches: The toggle outputs operate bilge pump and nondimmable lights, such as nav lights and courtesy lights.
Dimmable Outputs: Press-and-hold dimmers to set a preferred brightness on board.
Momentary Outputs: Control horns and more. Simply press and release for desired length of horn beep.
Livewell Timer: A built-in timer turns the pump to cycle the water to keep fish alive - and keep pumps functioning longer.
Manage Inputs Monitor Tanks: Experience built-in tank sender detection and calibration for as many as four tanks, such as fuel, freshwater, greywater, blackwater and livewell.
Additional Inputs: See analogue voltages on house and start battery, monitor bilge pump operation, and connect optional physical switches.
Upgrade Any Boat: Retrofit into existing boats without special tools or configuration by using the included 18″ flying leads and colour-coded channel wires.
