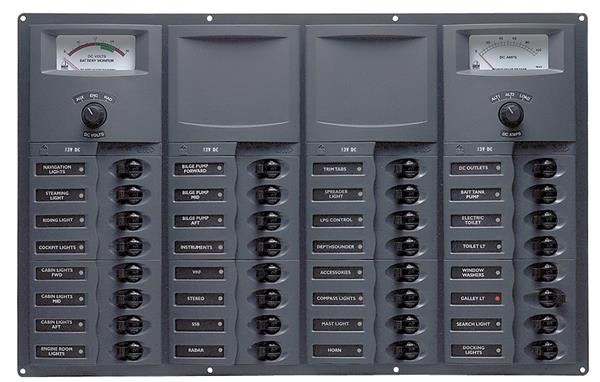

BlueSea Switch Panel 16-12VDC/8-230VAC CE - All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
| Specifications |
|---|
| Positions | 6 AC
15 DC
| | Nominal Voltage | 230V AC
12V DC
| | Height | 10.00in (254 mm)
| | Width | 14.75in (374.65 mm)
| | Depth | 3.00in (76.2 mm)
| | Weight | 6.50lb (2.95 kg) |
| Included |
|---|
| 3 | 7299 | A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch) | | 1 | 7294 | A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main) | | 1 | 9354 | AC Voltmeter - 0 to 250V AC (AC Meter) | | 9 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch) | | 1 | 7250I | Circuit Breaker CA1 100A Red IP (DC Main) | | 1 | 8017 | DC Analog Ammeter - 0 to 100A with Shunt (DC Meter) |
|
