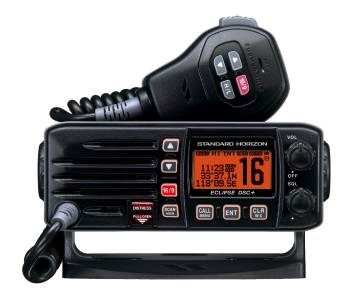

Cactus Navigation and Communication Ltd : Standard GX1100 Fixed DSC VHF (Standard Horizon GX1100E)

Affordable Ultra Compact Class D Fixed Mount VHF Radio

Designed with an advacnce die-cast chassis makes this full functioning 25Watt VHF rado the perfect choice for serious power and sail sailors alike.

Channel Names and GPS Repeating

All the information you need right at your fingertips. Customizable channel naming allows you to easily change the channel name for greater ease of use and better channel recognition. Position, date and time are also displayed on the radio screen are displayed when interfaced with a GPS receiver.

Advanced Features

Large Easy to read LCD which displays LAT/LON or channel name, programmable scan, Priority Scan and Dual Watch.

Digital Selective Calling

Distress, All Ships, Individual, Position Request and Position Reporting with NMEA 0183 in/out to your favourite GPS chart plotter.

Submersible JIS7 / IPX7 ( 1M for 30 minutes)

Seperate Dedicated Channel 70 receiver for DSC signalling

GPS position and Time shown on a Dot Matrix display ( reqs connection to GPS receiver)

DSC Distress, Individual, Urgency, Safet, Position Report and Request Functions

Programmable Scan, Priority Scan and Dual Watch

NMEA in and output connections to a compatible GPS chart plottere.

Microphone controls for Channel Selection, High/Low Power and fast Access to Ch16/9

ATIS mode for use on Inland Waterways under RAINWAT agreement

Available in Two Colours Black or White with matching speaker mic.

Specifications

GENERAL
Input Voltage	12.0V DC +30%, -10% ( 10.8V - 15.6V
Current Drain	Standby: 0.3A
	Receive: 1.0A
	Transmit: 5.5A (Hi); 1.5A ( Lo)
Overall Dimensions	155W * 60H * 170D mm
Flush Mount Dimentions	131W * 51H * 170D mm
Weight	920g

TRANSMITTER
RF Output	25W (Hi); 1W (Lo)
Conducted Spurious Emissions	Less than 0.25uV
Frequency Stability	+/- 1.5KHz ( -15degC to +55degC
FM Hum and Noise	50dB

RECEIVER
Sensitivity	12dB SINAD: 0.25uV
Selectivity	70dB / Spurious and Image Rejection (Typical)
	70dB / Intermodulation and Rejection at 20dB
Audio Output	4.5W
DSC Format	ITU-R M.493-11
NMEA Data In/Out	Output: DSC and DSE
	Input: GLL, GSC, RMC and GNS
Standard Horizon reserves the right to make changes and enhancements to products at our discresion. Current specifications are therefore subject to change without notice.
