SIMRAD AP70 THRUSTER PACK (AP70, AC70, RF300, RC42 PLUS SD80)

The Simrad AP70 represents over 60 years of experience and development in the autosteering business. Simrad's heritage extends back to the world's first autopilot in 1951 (the AP1) and we now bring you the next generation in professional heading control systems that are guaranteed to provide you with the highest standards of reliability and functionality.

The AP70 is cost effective, reliable and user-friendly heading control systems for all vessel types. Built with the latest electronics, software and networking components, this pilot is easy to install and easy to operate ensuring your vessel operations are smarter and more competitive.

Simrad AP70 Thruster Pack includes the AP70, AC70, RF300, RC42 and SD80 and is a state of the art type approved autopilot. Simrad AP70 can be used as a standalone autopilot control unit, or is perfect as a second station in an AP80 system.

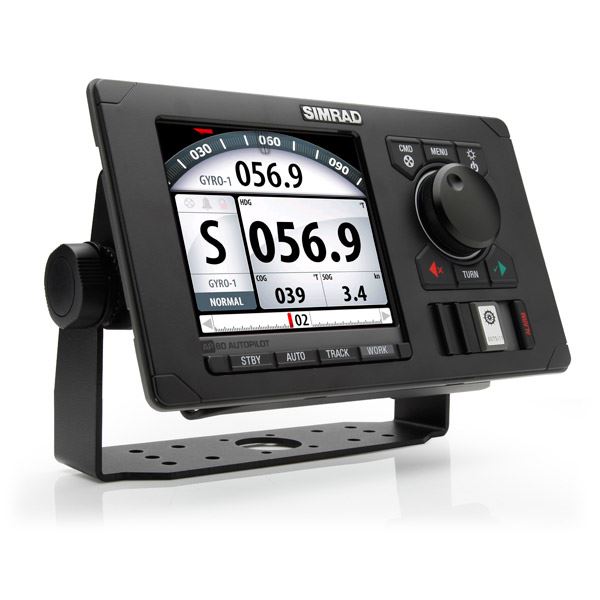

AP70

With its completely new and unique colour user interface and intuitive graphics, ability to store up to 3 individual scenario profiles, and self-learning software, this modular system makes installation and operation so easy. You won’t find another pilot on the market that boasts the same performance, durability and versatility without the high cost.

The AP70 system is made from ruggedized aluminium, has a 5inch bonded high sunlight viewable screen, and can be panel (flush) or bracket mounted.

Simrad's autopilot systems are backed by a full two-year warranty that is supported by a global service network.

AP70 Product overview

MATCH YOUR REQUIREMENTS

The Simrad AP70 is ideal for both simple installations where IMO approval is not required but also can be configured (by matching with an approved computer) to meet the requirements for a Type Approved autopilot. Install as a stand-alone display or network as a second or third station for ultimate vessel control.

SMART CONSTRUCTION
The AP70’s stunning waterproof design, daylight viewable display, colour user interface, intuitive on-screen graphics and option of flush or bracket mount, enable easy operation regardless of the installation requirements. Additionally, dedicated mode, command and turn keys and rotary knob provide quick and unmistakable selection of the required function when the situation calls for immediate response.

FLEXIBLE INTEGRATION
Integration with other external on-board systems including interface to central alarm units is achieved by multiple IEC 61162-1, 2 and 3 channels.

SIMPLE NETWORKING
The AP70 and utilises our intelligent SimNet protocol, making installation, data sharing and system control easier and more flexible than ever.

MEET NGINDUSTRY  TYPE APPROVALS
The AP70 has been put through stringent test protocols and meet International Maritime Organisation (IMO) approval standards. The majority of the system building components also meets these approvals, so a full IMO certified autopilot system can be built.

AC 70
Drive computer for rudder using reversible motor or non-isolated solenoids and frequency rudder angle feedback. Connection for NFU remote control and one channel IEC 61162-1 (NMEA 0183) RX/TX or IEC 61162-1,2 and 3 compatible.

RF 300
The RF300 is a medium duty rudder feedback unit which connects directly to the Autopilot Pilot Computer using 2 wire frequency interface.

SD 80
Drive interface for on/off or proportional control of rudder or thruster using galvanic isolated solenoids or high level current with possibility for frequency, voltage or current angle feedback, digital drive handshake and external mode input.

RC 42
The RC42 is a rate compass with an integrated rate of turn sensor. It provides a significant improvement to the dynamic performance of both the autopilot and a stabilized radar display.
