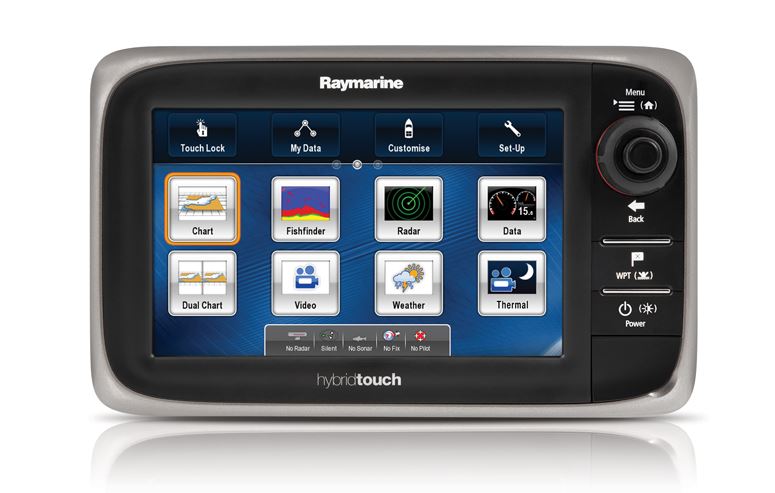

Chartplotters: RAYMARINE E7D HYBRID MULTI TOUCH MFD (WITH US EMBEDDED CHART) (T70005)

The Raymarine e7 multifunction display's sleek, low-profile, bezel offers maximum display size in a small footprint. Feature rich, the Raymarine e7 is equipped with three processors so you can enjoy stunning 3D graphics, brilliant video and instantaneous chart redraws. And with Wi-Fi streaming to Apple iPhones and iPads, Bluetooth connectivity and SeaTalk^HS networking capability, the Raymarine e7 puts you in total control.

Dimensions	226 x 142 x 150mm max to cable bend radius (W x H x D)
Cartography	Worldwide base map for non cartography variants Navionics Ready to Navigate in all other variants (upgradable to Navionics Gold/ Platinum)
Nominal voltage	13.8 V DC
Voltage range	10.2 - 15.6 V DC
Power at maximum brightness	13.2 Watts
Power in standby mode	less than 100mW (at 10 V)
Display	7" landscape (800 x 480 pixels) with LED backlighting
Display viewing angles	+/- 70º horizontal and +/- 50º vertical
Weight	Raymarine e7 2.385 kg (5.26 lbs) Raymarine e7D 2.423 kg (5.34 lbs)
Networking	Up to 6 e7 displays or sensors using a network switch
Mounting options	Surface mount as standard or trunnion mount using optional bracket assembly
GPS	48 channels 1 second hot start 35 seconds upwards cold start
Languages	UK English, US English, French, German, Danish, Dutch, Spanish, Italian, Norwegian, Finnish, Turkish, Swedish, Portuguese, Russian, Chinese, Japanese, Korean, Croatian, Greek and Polish.
Operation temperature range	-25º to 55ºC (13º to 131ºF)
Connectivity	WiFi 802.11 b/g Bluetooth 2.1 + EDR power class 1.5 Video input (PAL/NTSC/SECAM) SeaTalk^NG / NMEA 2000 NMEA 0183 input (x2) NMEA output (4800/9600/38,400 baud) Sonar transducer port (e7D only) Ethernet 10/100 Mbits/s
