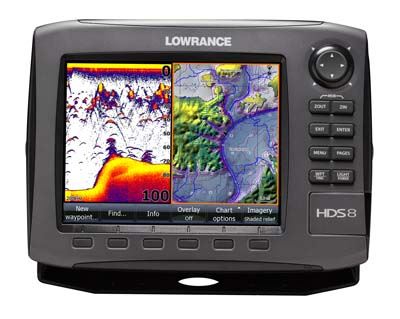

LOWRANCE HDS-8 GEN 2 PLOTTER-SOUNDER W/O TR

The 8.4 in/21.3 cm display is an excellent size to “Get The Whole Picture” by dividing the screen into three or four panels: chartplotter, Broadband Sounder™, engine and system data, and optional StructureScan® viewing – plus users get the added advantage of programmable softkeys.

Two waterproof SD card slots to load high-detail charting options. Users can also and save sonar and navigational data, and upload future HDS® software feature updates.

Display Size	8 in 203 mm
Display Resolution	600 x 800 (H x W)
Display Type	16-bit color Super VGA SolarMAX™ PLUS TFT
Backlighting	Screen/Keypad
Backlighting Type	Pure white LED
Sonar And GPS Overlay Data	Yes
Split Screen Presentation	Yes
Multilanguage Display	Yes
Languages Supported	32

Sonar Frequency	50/83/200 kHz
Transducer Type	Multiple selections for Lowrance® and Airmar®
Sonar Output Power	Max 250W Broadband, analog equivalent 30,000W and 32W Broadband, analog equivalent 3,750 W
Sonar Depth	Max 5000 ft 1524 m
Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more	Yes
FasTrack™	Yes
Ping Speed HyperScroll™	Yes
Depth Alarm	Yes
Shallow Alarm	Yes
Temperature Display	Yes

GPS Antenna Type	INTERNAL GPS+EGNOS+MSAS
Background Map	Worldwide background map
Custom Mapping	Navionics Platinum+  chartcards with Turboview™ for worldwide coverage -
Waypoint Storage	5000
Routes	200
Plot Trails	Up to 10 trails - up to 12,000 points/trail
Man Overboard Feature	Yes
GPS Alarms	Yes

Antenna Type

Optional Lowrance radar choices available
