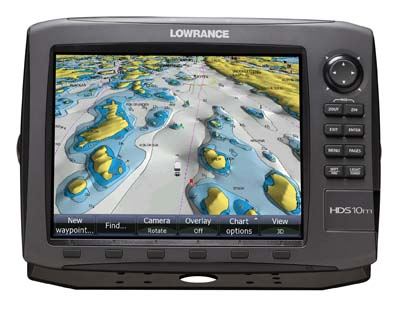

LOWRANCE HDS-10M GEN 2 PLOTTER

The HDS-10m has intuitively simple operation through the combination of an easy-to-understand menu system, plus programmable softkeys for instant display of favorite page views.

Two waterproof SD card slots to load high-detail charting options. Users can also and save navigational data, and upload future HDS software feature updates.

Display Size	10.4 in 264 mm
Display Resolution	600 x 800 (H x W)
Display Type	16-bit color Super VGA SolarMAX™ PLUS TFT
Backlighting	Screen/Keypad
Backlighting Type	Pure white LED
Sonar And GPS Overlay Data	Yes
Split Screen Presentation	Yes
Multilanguage Display	Yes
Languages Supported	32

GPS Antenna Type	Internal, high-sensitivity GPS+EGNOS+MSAS
Background Map	Worldwide background map (non-Americas)
Custom Mapping	Navionics Platinum+ chartcards with Turboview™ for worldwide coverage
Waypoint Storage	5000
Routes	200
Plot Trails	Up to 10 trails - up to 12,000 points/trail
Man Overboard Feature	Yes
GPS Alarms	Yes

Antenna Type

Optional Lowrance radar choices available

NMEA 0183 Input	Yes
NMEA 0183 Interface	Type 232 [(2) Tx (2) Rx], Type 422 [(1) Tx (1) Rx]
NMEA 2000 Certified	Yes
NMEA Output	0183/2000
Connectors	NMEA 2000®, NMEA 0183 and Ethernet

Built-in Backup Memory	Yes
Casing	Sealed and waterproof IPX7
Width	12.2 in 311 mm
Height	8.8 in 224 mm
Depth	3.6 in 92 mm
Operating Temperature	(5F - 130F) (-15C - 55C)

Power Supply	10 - 17 vDC
Power Consumption	0.7A at 13 vDC with backlight on, 0.45A with backlight off
NMEA 2000 Load Equivalency Number	1 network load (50mA)
