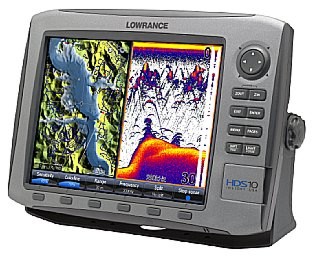

Transducer not supplied The finest of new Lowrance fishfinding and GPS navigation technologies with massive, high-definition 10.4”/26.4 cm Super VGA color viewing. The new SolarMAX™ PLUS display renders brilliant detail in sunlight with the best wide-angle viewing ever available, while advanced pure-white LED screen/keypad backlighting fully adjusts to zero-dim for night fishing. The unique new FlyWheel™ dial and command soft keys give you easier and quicker control of Broadband Sounder fishfinding and satellite navigation precision via the built-in 16-channel GPS+WAAS antenna. HDS built-in cartography choices include Enhanced U.S. Basemap, or the amazing, life-like and new Insight USA™ with combined Inland and Coastal coverage (Americas) - Or Navionics World Background map (non-Americas). Plus, this HDS is now fully compatible with all Navionics® chartcards* – Platinum+, Platinum, Platinum HotMaps – with two high-speed SD card slots. Fully ready to build your complete stand-alone or networked onboard system. * Available as a software update March 2009. Built-in Broadband Sounder Internal 16-channel GPS+WAAS (GPS+EGNOS+MSAS for non-Americas) Antenna Brilliant, New 10.4"/26.4 cm SolarMAX™ Plus Display Built-in Navionics World Background map (non-Americas) Largest Selection of Chartcard Options Including Navionics® Platinum+ with TurboView™ * Ethernetworks and NMEA 2000® Performance Networking Options Expanded New 2-Year Limited WarrantyDISPLAY | Display Size | 10.4 in 264 mm | | Display Resolution | 600 x 800 (H x W) | | Display Type | 16-bit color Super VGA SolarMAX™ PLUS TFT | | Backlighting | Screen/Keypad | | Backlighting Type | Pure white LED | | Resize Display Window | Yes | | Sonar And GPS Overlay Data | Yes | | Split Screen Presentation | Yes | | Multilanguage Display | Yes | | Languages Supported | 23 |
SONAR / SOUNDER | Sonar Frequency | 50/200 or 83/200 kHz | | Transducer Type | Choice of dual frequency Skimmer® | | Sonar Output Power | Max 250W/32W RMS actual; 30,000/3,750 RMS analog equivalent W | | Sonar Depth | Max 5000 ft 1524 m | | Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more | Yes | | FlashGraf™ | Yes | | FasTrack™ | Yes | | Ping Speed HyperScroll™ | Yes | | Sonar Alarms: Fish, Max and Min Depth | Yes | | Temperature Display | Yes |
GPS / NAVIGATION | GPS Antenna Type | Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas) | | GPS Receiver Channels | 16 channels | | Background Map | Worldwide background map | | Custom Mapping | Optional Navionics® Platinum+ and Platinum chartcards with TurboView™ for worldwide coverage - as well as Navionics® HotMaps™ Platinum, Lowrance Hot Spots® PRO | | Waypoint Storage | 5000 | | Man Overboard Feature | Yes |
RADAR | Antenna Type | Optional Lowrance radar choices available |
NETWORKING / CONNECTORS | NMEA 0183 Input | Yes | | NMEA 2000 Pending Certification | Yes | | NMEA Output | 0183/2000 | | Connectors | NMEA 2000®, NMEA 0183 and Ethernet |
TECHNICAL / ENVIRONMENTAL | Built-in Backup Memory | Yes | | Casing | Sealed and waterproof | | Width | 12.3 in 312 mm | | Height | 8.9 in 225 mm | | Depth | 3.6 in 92 mm |
POWER OTHER | Memory Card Capable | Two SD/MMC memory card slots | | Other Features | Broadband Sounder technology, ethernet networking, and new 2-year limited warranty |
|
