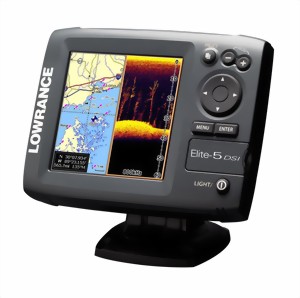

LOWRANCE ELITE 5 BASE COMBO SOUNDER PLOTTER WITH TM TR

The colour Elite-5 fishfinder/chartplotter brings high performance and high colour to on-the-water enjoyment in every way, and without a high price. You enjoy incredible precision and functionality, in addition to a spectacular new view.


The brilliant 5 in./12.7 cm, 480x480 pixel SolarMAX™ 256-colour TFT display has unmatched screen brightness, contrast, resolution and viewing detail at wider angles and in bright sunlight. Adjustable screen and keypad backlight improves usability and visibility day or night.


The 500W RMS sounder reaches depth of 1,000'/305 m with its dual-frequency 83/200 kHz Skimmer®  transom-mount transducer with internal temp sensor and up to 120˚ of wider sonar coverage. Unique TrackBack™ feature offers immediate scroll-back to review multiple pages of fishfinder history.


The internal 16-channel GPS antenna provides great precision for navigation. And an external antenna option is also available for customized applications.  A waterproof microSD memory card slot is fully compatible with Navionics® Gold chartcards, as well as Fishing Hot Spots® and LakeMaster®* mapcards in the microSD format for U.S. anglers. Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail.


All of this, packaged with easy-to-use menus with Advanced Mode to expand features selection. An all-new case/mounting design provides for easy one-hand tilt/swivel view adjustment, removal and re-install - even fits same cut-out for previous 5 in./7 cm models for in-dash installations. And a new uniplug 1/4-turn connectors are compatible with earlier Lowrance uniplug installations to simplify upgrades to any new Elite model.

Display Size	5 in 127 mm
Display Resolution	480x480 (H x W)
Display Type	256-colour SolarMAX™ PLUS TFT
Backlighting	Flourescent cold cathode
Backlighting Levels	Adjustable screen/keypad
Languages Supported	23

Sonar Frequency	83/200 kHz
Transducer Type	Skimmer®
Sonar Output Power	Max 500W RMS, 4000W PTP W
Sonar Depth	Max 1000 ft 305 m
Sonar Alarms: Fish, Max and Min Depth	Yes
Depth Alarm	Yes
Shallow Alarm	Yes
Temperature Display	Yes

NMEA Output

NMEA 0183

Built-in Backup Memory	Yes
Waterproof Standard	Sealed and waterproof, suitable for saltwater use
Width	6.9 in 174 mm
Height	5.4 in 136 mm
Depth	2.5 in 63 mm

Power Supply

10-17 vDC
