HUMMINBIRD Humminbird 958CX Combo Sounder Plotter with Transom Mounted TR

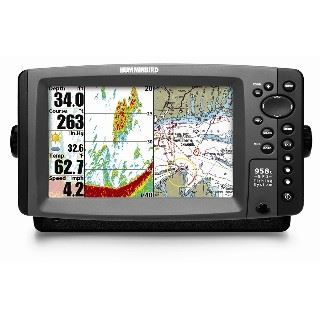

Humminbird 958CX Combo Sounder Plotter with Transom Mounted Transducer

The 958c Combo features a brilliant color, wide-screen 480V x 800H 8" display, DualBeam PLUS sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in ContourXD mapping, and advanced Fishing System capabilities. Includes unit cover. Maximize your angling experience with the Humminbird 958c Combo fishfinder GPS system.

• 8.0" diagonal
• 480V x 800H
• 16:9 Color TFT

• Navionics Compatible
• LakeMaster Compatible

• Waypoints: 3,000
• Routes: 50
• Tracks: 50 w/20,000 points each

Sonar

DualBeam PLUS

• 200 kHz / 20° @ -10db
• 83 kHz / 60° @ -10db
• Depth: 1500 ft.
• (3000 ft with optional 200/50 kHz transducer for deepwater use)

• 1000 Watts (RMS)
• 8000 Watts (Peak-to-Peak)

• 50 Channel GPS
• Trackplotting
• Chartplotting
• GPS Speed
• Humminbird ContourXD mapping
• Navionics Platinum SD Format(optional)

Display Size:	8.0" diagonal
Display Pixel Matrix:	480V x 800H
Display Type:	16:9 Color TFT
Display Colors/Grayscale:	65,000 Colors
DualBeam PLUS
Sonar Coverage	200 kHz / 20° @ -10db 83 kHz / 60° @ -10db
Sonar Optional:	QuadraBeam PLUS
Target Separation:	2.5 inches
Power Output (RMS):	1000 Watts (RMS)
Power Output (Peak to Peak):	8000 Watts (Peak-to-Peak)
Temperature:	Included
Speed:	GPS Speed Included
Backlight:	Yes
Waterproof:	Yes
Mount:	Gimbal
Unit Size:	11" W x 6" H x 4" D
Mount:	In-dash
Unit Size:	11" W x 6" H x 2" D
Transducer Mounting:	Inside Hull or Transom
Power Input:	10-20 VDC
