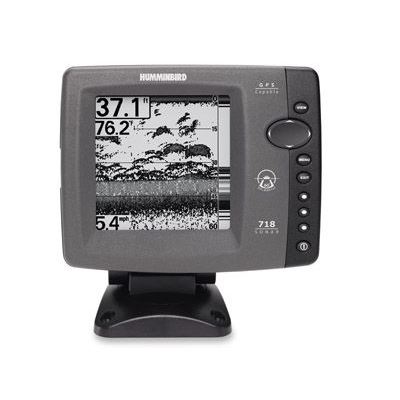

Humminbird 718X Mono Sounder with Transom Mounted Transducer

The 718 features a high resolution 16 level grayscale 320V x 320H 5" display, DualBeam PLUS sonar with 2400 Watts PTP power output, and advanced Fishing System capabilities. Maximize your angling experience with the Humminbird 718 fishfinder.

• 5.0" diagonal
• 320V x 320H
• FSTN LCD

• Waypoints: 750
• Routes: 0
• Tracks: 10 w/ 2,000 points each

Sonar

DualBeam PLUS

• 200 kHz / 20° @ -10db
• 83 kHz / 60° @ -10db
• Depth: 1000 ft.

• 300 Watts (RMS)
• 2400 Watts (Peak-to-Peak)

• 50 Channel GPS (optional)
• Trackplotting (optional)

Display Size:	5.0" diagonal
Display Pixel Matrix:	320V x 320H
Display Type:	FSTN LCD
Display Colors/Grayscale:	16 Level Grayscale
DualBeam PLUS
Sonar Coverage	200 kHz / 20° @ -10db 83 kHz / 60° @ -10db
Sonar Optional:	QuadraBeam PLUS
Target Separation:	2.5 inches
Power Output (RMS):	300 Watts (RMS)
Power Output (Peak to Peak):	2400 Watts (Peak-to-Peak)
Temperature:	Included
Speed:	Capable
Backlight:	Yes
Waterproof:	Yes
Mount:	Quick Disconnect
Unit Size:	6.9"W x 7.5"H x 4.5"D
Mount:	Optional In-dash
Unit Size:	6.9"W x 5.4"H x 1.25"D
Transducer - Standard:	XNT-9-20-T
Transducer Mounting:	Inside Hull or Transom
Power Input:	10-20 VDC
