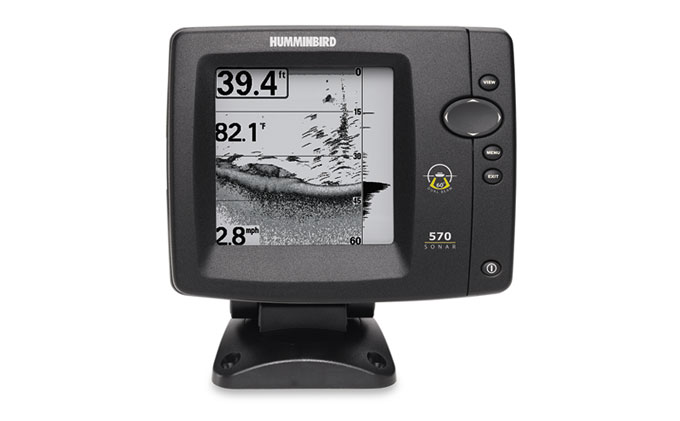

See everything on the generous 4.5” display with 640 vertical pixels for crystal clarity. With a screen that size, it’s easy to take advantage of the versatile dual beam sonar and Humminbird® Sonar Echo Enhancement. It’s so sensitive you can track a jig down to 25 metres, and separate fish as close as 65 millimetres apart. You can also choose between actual sonar returns or Humminbird’s® Fish ID+™ target identification. All of this in a new design perfect for in-dash or tilt & swivel quick disconnect mounting System installation. Simply. Clearly. Better. | Display Size | 5" diagonal | | Display Pixel Matrix | 640V x 320H | | Display Type | FSTN LCD | | Display Colours/Greyscale | 12 level greyscale | | Sonar - Standard | Dual Beam
| | Sonar Coverage | 20º & 60º @ -10db | | Sonar Frequency | 200/83kHz | | Target Separation | 65mm | | Power Output (max.) | 250 watts (RMS) 2000 watts (peak to peak) | | Depth Capability | 244m | | Temperature | Included
| | Speed | Capable
| | Backlight | Yes | | Waterproof | Yes | | Unit Size - Gimbal Mount | 175W x 190.5H x 114D mm | | Mount | Quick disconnect | | Transducer - Standard | 103303 | | Transducer Mounting - Standard | Transom | | Power Input | 10-20VDC |
|
