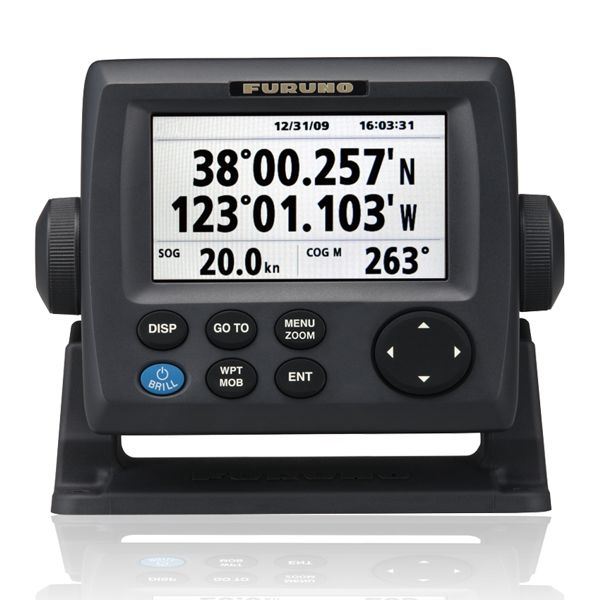

Compact in size, yet big on features and performance, the FURUNO GP-33 is the perfect GPS navigator for a wide range of vessels. This advanced unit provides reliable and accurate position fixing, thanks to a super sensitive, 12-channel GPS receiver combined with integrated WAAS technology.
The GP-33 has a waterproof display and is built to stand up to tough marine conditions. The durable casing houses an impressive memory, capable of storing up to 3,000 points of ship’s track, 10,000 points for marks and waypoints, and 100 routes of up to 30 waypoints each. Vital navigation data is presented on a 4.3" color LCD.
The GP-33 features FURUNO’s CAN bus interface system for feeding highly accurate navigation data to your NavNet 3D, radar, chart plotter, autopilot, fish finder or other navigation equipment. The unit offers easy plug-and-play installation with CAN bus network connectivity. NMEA0183 protocol versions are also supported.
- 4.3" "Sunlight Viewable" color LCD (Brightness: 700 cd)
- Enhanced data legibility thanks to large characters and high resolution visual aid
- Stores up to 10,000 marks/waypoints, 100 routes and 3,000 track points
- 7 display modes available, including 2 user-customized modes
- Supports both NMEA0183 and CAN bus interface
- Contact closure capability available on the 10P connector
- SBAS capable for better measurement
TECHNICAL SPECIFICATIONSDISPLAY
| | | Screen Size | 4.3" color LCD
| | Effective Display Area | 95.04 (W) x 53.85 (H) mm | | Pixel Number | 480 (V) x 272 (H) pixels | | Display Mode | Plotter, Highway, Steering, Nav Data, Satellite, User Display1, User
Display2 | | Memory Capacity | 3,000 ship's track points
10,000 marks and waypoints with comments
100 routes, 30 waypoints/route | Alarm
| Arrival, Anchor watch, XTE, Speed, WAAS, Time, Trip, Odometer | | GPS/WAA | | | Receiver Typ | GPS: Twelve discrete channels, C/A code, all-in-view
WAAS receiver: Standard tted in display unit | Receive Frequency
| L1 (1575.42 MHz) | Time to First Fix
| Less than 90 seconds (Cold start)
| Tracking Velocity
| 999.9 knots
| Geodetic Systems
| WGS-84 (and others)
| | ACCURACY | | | GPS: Better than 10 m (2rdms) | | WAAS: Better than 3 m (2rdms) | | INTERFACE | | | Ports | DATA1: CAN bus
DATA2: NMEA0183 (ver 2.0, 3.0)
DATA3: RS-232C | Output
| NMEA0183
AAM, APB, BOD, BWC, BWR, DTM, GGA, GLL, GSA, GSV, RMB, RMC,
VTG, XTE, ZDA
CAN bus
059392, 060928, 061184, 126208, 126464, 126720-1, 126720-2,
126992, 126996, 127258, 129026, 129029, 129033, 129044, 129283,
129284, 129285, 129538, 129539, 129540, 130822, 130823 | Input
| CAN bus
059904, 060928, 061184, 065286, 126208, 126720
| POWER SUPPLY
| | 15V DC : LEN7 (CAN bus)
12-24V DC : 0.24-0.12 A (Non CAN bus)
| | ENVIRONMENT | | Temperature
| Display unit: -15°C to +55°C
Antenna unit: -25°C to +70°C
| Waterproofi ng
| Display unit: IP56
Antenna unit: IPX6
|
|
